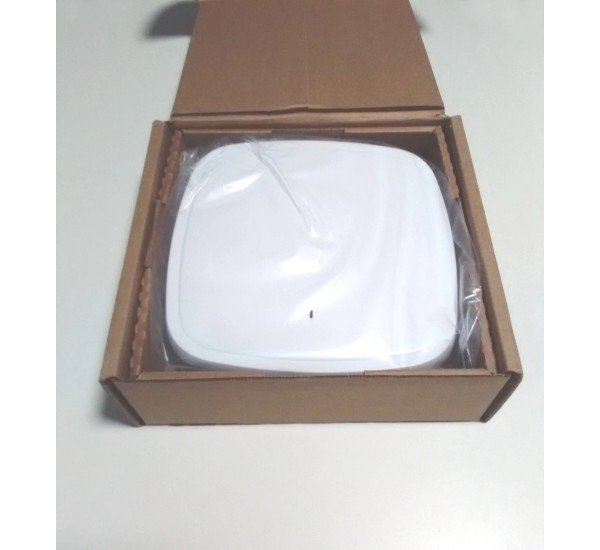

Cisco C9130AXE-C WiFi 6 Wireless Access Point
The Cisco C9130AXE-C Dual-Band WiFi 6 Access Point delivers lightning-fast wireless connectivity for enterprise and business networks in Bangladesh. Designed for high capacity, low latency, and secure connections.
Cisco C9130AXE-C WiFi 6 Wireless Access Point - Specification Table
| Specification | Details |
|---|
| Model | Cisco C9130AXE-C |
| Product Series | Cisco Catalyst 9130AX Series |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz and 5 GHz |
| MIMO Technology | 8×8:8 MU-MIMO (5 GHz), 4×4:4 MU-MIMO (2.4 GHz) |
| Maximum Data Rate | Up to approx. 5.38 Gbps aggregate throughput |
| Antenna Type | External antenna (supports smart antenna connector) |
| Ethernet Port | 1 × Multigigabit Ethernet (100/1000/2.5G/5G RJ-45) |
| Additional Ports | RJ-45 management console port, USB 2.0 (4.5W) |
| Power Requirement | 802.3at PoE+, 802.3bt Cisco UPOE, or power injector |
| Maximum Power Consumption | Up to 30.5 W |
| Security Features | WPA3, secure boot, hardware-based encryption |
| Wireless Features | OFDMA, BSS Coloring, beamforming, CleanAir Pro |
| Memory | 2048 MB DRAM, 1024 MB Flash |
| Operating Temperature | −20°C to 50°C |
| Operating Humidity | 10% – 90% non-condensing |
| Dimensions | 9.17 × 9.17 × 1.58 in (23.3 × 23.3 × 4.0 cm) |
| Weight | 3.78 lb (1.71 kg) |
| Management | Cisco DNA Center, CLI, APIs, Catalyst Wireless Controllers |
| Compatible Controllers | Cisco Catalyst 9800 Series, 3504, 5520, 8540 WLC |
Cisco C9130AXE-C WiFi 6 Wireless Access Point Description
The Cisco C9130AXE-C is a high-performance WiFi 6 (802.11ax) access point designed for enterprise environments. It delivers faster speeds, increased capacity, and enhanced security to support modern applications, high-density deployments, and IoT devices. Ideal for offices, campuses, and smart buildings, this access point ensures reliable connectivity and seamless roaming for all users.
Key Features
- WiFi 6 (802.11ax) Technology – Supports faster wireless speeds and higher capacity for multiple devices simultaneously.
- Dual 5 GHz and 2.4 GHz Radios – Ensures optimal performance across all frequency bands.
- Enhanced Security – Integrated WPA3, Advanced Encryption, and Cisco Secure Network features.
- High-Density Support – Optimized for environments with many concurrent users.
- IoT-Ready – Supports BLE, Zigbee, and other IoT protocols.
- Flexible Deployment – Wall, ceiling, or desktop mounting options.
- Seamless Roaming – Ideal for enterprise mobility with minimal downtime.
Compatibility
The Cisco C9130AXE-C is compatible with:
- Cisco Catalyst 9000 Series Switches
- Cisco DNA Center for network automation and management
- Cisco ISE (Identity Services Engine) for security policies
- Existing WiFi 6/6E devices and legacy WiFi devices
- IoT devices using BLE, Zigbee, or other supported protocols
Frequently Asked Questions (FAQ)
Q1: What is the maximum speed of the Cisco C9130AXE-C?
A1: It supports up to 5.38 Gbps aggregate throughput across all radios, depending on deployment and configuration.
Q2: Can it be deployed outdoors?
A2: No, the C9130AXE-C is designed for indoor use only. For outdoor deployments, consider the Cisco C9115AXE series.
Q3: How many clients can it support simultaneously?
A3: It can efficiently handle up to 200+ concurrent clients per access point.
Q4: Does it support Power over Ethernet (PoE)?
A4: Yes, it supports 802.3at PoE+, eliminating the need for separate power sources.
Q5: Is it backward compatible with older WiFi devices?
A5: Yes, it supports legacy WiFi devices including 802.11a/b/g/n/ac.
