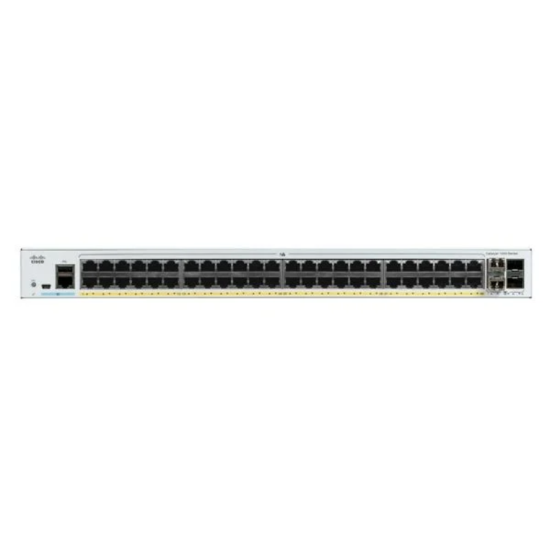

Cisco C1000-48FP-4X-L – 48-Port Gigabit Full PoE/PoE+ Managed Switch with 4×10G Uplinks (Lifetime License)
The Cisco C1000-48FP-4X-L is a high-performance 48-port Gigabit Managed PoE/PoE+ Switch designed for small to medium-sized business networks that demand robust connectivity, powerful PoE power delivery, and scalable fiber uplinks. With 48 Gigabit Ethernet PoE+ ports, a 740W PoE budget, and 4×10G SFP+ uplinks, this switch delivers reliable network performance for IP cameras, wireless access points, VoIP phones, and other PoE-powered devices.
Ideal for enterprise access layers, branch offices, and wiring closets, the Cisco C1000-48FP-4X-L provides advanced Layer 2 features, flexible management options, and secure network operation—all backed by Cisco IOS Software and a lifetime license.
Key Features
- 48 × 10/100/1000 Mbps PoE/PoE+ Ethernet Ports with up to 740W total power budget for powering devices such as IP cameras, access points, and VoIP phones.
- 4 × 10G SFP+ Uplink Ports for high-speed fiber backbone connectivity and uplinks.
- Layer 2 Managed Switch with VLAN, QoS, STP, ACLs, and advanced traffic management.
- Cisco IOS Software for reliable, secure network operations and flexible management.
- Web UI, CLI & SNMP Management for easy configuration and monitoring.
- Rack-Mountable 1U Form Factor suitable for server rooms and enterprise racks.
- High Switching Capacity & Performance to support business-critical applications.
Cisco C1000-48FP-4X-L Specification Table
| Specification | Details |
|---|
| Model | Cisco C1000-48FP-4X-L |
| Product Type | Managed Gigabit PoE+ Switch (Full PoE) |
| Series | Cisco Catalyst 1000 Series |
| Switch Layer | Layer 2 Managed |
| Total Ports | 52 |
| PoE+ Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ ports (auto-sensing) |
| Uplink Ports | 4 × 10G SFP+ uplinks |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | ~740W |
| Switching Capacity | ~176 Gbps |
| Forwarding Rate | ~130.94 Mpps (64-byte) |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 256 active VLANs (VLAN IDs up to 4094) |
| Static Routing | Basic IPv4 static routing support |
| Jumbo Frames | Supported |
| QoS | Yes (Traffic classification & prioritization) |
| Security Features | ACLs, DHCP Snooping, 802.1X, RADIUS, SSH/SSL, BPDU Protection |
| Management Interfaces | Web UI, CLI, SNMP, RMON |
| Console Ports | RJ-45 & USB (mini-B / USB-A for storage/console) |
| Memory & CPU | ~512 MB RAM, ARM CPU (typical for Catalyst 1000) |
| Form Factor | Fixed, Rack-mountable (1U) |
| Power Input | 100–240V AC, 50–60 Hz |
| Operating Temp. | Approx. –5°C to 50°C |
| Use Cases | SMB / Enterprise edge, VoIP phones, Wi-Fi APs, IP Cameras |
How to Install Cisco C1000-48FP-4X-L1. Unbox & Inspect
- Unpack the switch and ensure all included accessories are present (rack brackets, power cable, etc.).
2. Mount in Rack
- Attach the provided rack ears and secure the switch in a standard 19-inch rack.
3. Connect Power
- Plug in the AC power cable and switch on the device.
4. Connect Devices
- Use Ethernet cables to connect PCs, servers, VoIP phones, access points, and other devices. For long-distance fiber connectivity, insert compatible 10G SFP+ modules into the uplink ports.
5. Configure the Switch
- Access the switch management interface via web GUI or CLI. Configure network settings such as VLANs, IP address, QoS policies, and PoE priorities.
Compatibility
- Cisco routers, firewalls, and access points
- IP cameras and surveillance systems
- VoIP phones and wireless access points
- 10G SFP+ fiber modules for high-speed uplinks
- Standard networking protocols including IEEE 802.3, 802.1Q, STP
This compatibility makes it suitable for multi-vendor environments and scalable enterprise networks.
Frequently Asked Questions (FAQ)
1. Does this switch support PoE+ on all ports?
- Yes — all 48 ports support PoE/PoE+ with a total power budget of up to 740W to power devices like cameras and access points.
2. What is the purpose of the 10G SFP+ uplinks?
- The 4×10G SFP+ uplinks provide high-speed fiber connectivity for backbone links, aggregation, and connections to core switches or servers.
3. Is this switch managed?
- Yes — it is a fully managed Layer 2 switch with VLAN, QoS, ACLs, and advanced security features.
4. Can this be used for IP camera networks?
- Absolutely — with a high PoE budget and Gigabit PoE+ ports, it is ideal for powering multiple IP cameras and PoE devices.
5. What management options are available?
- You can manage it via Web GUI, CLI, and SNMP, offering flexibility for administrators.
