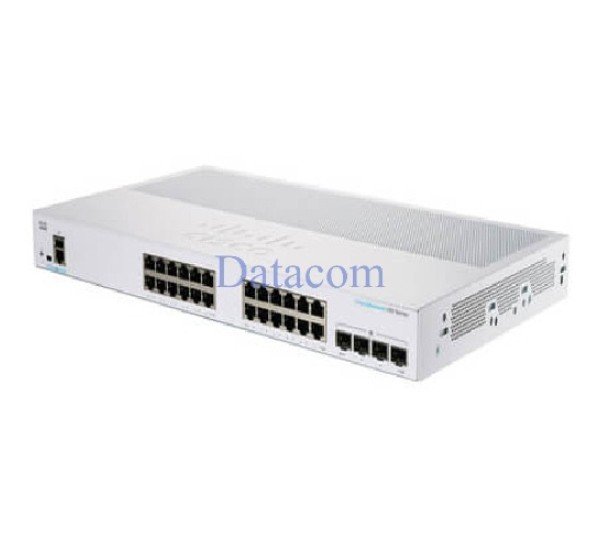

Cisco CBS350-24T-4G-EU Managed Switch Overview
The Cisco CBS350-24T-4G-EU is a managed switch with 24 ports, designed to support layer 2 and layer 3 services. It supports various protocols, including Head-of-Line (HOL) Blocking, IGMP Snooping, IPv4, IPv6, Link Aggregation, MAC Filtering, Port Mirroring, RADIUS, SNMPv1, SNMPv2c, and SNMPv3. The switch also supports queuing with Strict Priority and Weighted Round Robin (WRR) algorithms. The Cisco CBS350-24T-4G-EU has a MAC Address Table Size of 16K, Multicast Groups of 2000, and VLAN IDs of 4094. It also supports Access Control List of 1024, IP Interfaces of 128, and Static Routes of 990. It has a forwarding rate of 41.66 Mpps and 8 priority queues with a packet buffer of 1.5 MB. The switch supports jumbo frames of up to 9000 bytes and has a flash memory of 256MB. It is powered by an 800 MHz ARM processor. The switch has 24 Gigabit Ethernet ports and 4 Gigabit SFP ports, which provide high-speed connectivity. The switch is managed and does not support PoE. It has a switching capacity of 56 Gb/s and supports various network standards, including 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, and 802.3x. The switch has a compact rackmount form factor with dimensions of 445 x 240 x 44mm and a weight of 2.63 Kg. It comes with various indicators, including Link/Activity, Speed, and System. The switch has an MTBF (Mean Time Between Failures) of 2026793 hours and is powered by an internal power supply that operates on 100 to 240 VAC, 50/60 Hz. The Cisco CBS350-24T-4G-EU switch offers advanced security features, including DoS Attack Prevention, RADIUS Authentication, and Storm Control, which help protect the network from potential security threats.
Cisco CBS350-24T-4G-EU Specification Table
| Category | Specification |
|---|
| Brand | Cisco |
| Series | Cisco Business 350 Series |
| Model | CBS350-24T-4G-EU |
| Switch Type | Managed Switch (Layer 2 + Layer 3 Lite) |
| Total Ports | 24 × 10/100/1000 Gigabit Ethernet (RJ-45) |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 4094 VLAN IDs |
| Layer Features | Layer 2 switching + basic Layer 3 routing |
| Static Routes | Up to 990 routes |
| ACL Support | Up to 1024 entries |
| Packet Buffer | 1.5 MB |
| CPU | 800 MHz ARM processor |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Jumbo Frame Support | Up to 9000 bytes |
| Management | Web GUI, CLI, SNMP, Cisco Business Dashboard |
| Security Features | 802.1X, ACL, DHCP snooping, DoS protection |
| Console Port | RJ-45 console |
| USB Port | USB storage port |
| Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption | ~25W (base load, non-PoE) |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 445 × 240 × 44 mm |
| Weight | ~2.63 kg |
| Mounting | Rack-mountable (1U) |
Best Application of Cisco CBS350-24T-4G-EU in Bangladesh
The Cisco CBS350-24T-4G-EU is widely used in:
- Corporate office networks
- ISP and internet service providers
- Data centers and server rooms
- Educational institutions (schools, universities)
- Banks and financial organizations
- Government and enterprise IT infrastructure
In Bangladesh, this switch is ideal for businesses that require stable, high-speed, and secure network performance.
How to Install Cisco CBS350-24T-4G-EU Switch
Installing the Cisco CBS350-24T-4G-EU is simple and efficient:
- Mount the switch in a standard 19-inch rack
- Connect power cable and ensure stable electricity supply
- Connect network devices to the 24 Gigabit ports
- Use SFP ports for uplink or fiber connectivity
- Access the web interface via IP configuration
- Configure VLANs, routing, and security settings
- Save configuration and reboot if necessary
Proper installation ensures maximum performance and network stability.
Compatibility Devices
The Cisco CBS350-24T-4G-EU is compatible with a wide range of networking devices:
- Servers and data center equipment
- Routers and firewalls
- Access points and wireless controllers
- IP phones and VoIP systems
- Network storage (NAS) systems
- Fiber optic modules (SFP transceivers)
It supports multi-vendor integration and enterprise network expansion.
Why Choose Cisco CBS350-24T-4G-EU Switch?
- Enterprise-grade reliability
- Advanced Layer 3 features
- Strong network security
- Scalable business networking solution
- Energy-efficient performance
- Cisco trusted global quality
This switch is built for businesses that need long-term stable and secure networking infrastructure.
