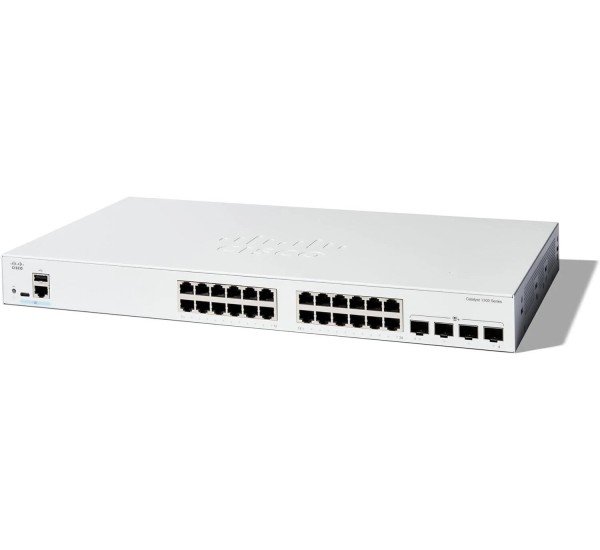

Cisco C1300-24T-4X Catalyst 1300 Series Switch
The Cisco C1300-24T-4X Catalyst 1300 Series Switch is a high-performance Layer 3 managed switch designed for small to medium business networks. It features 24 Gigabit Ethernet ports and 4×10G SFP+ uplinks, ensuring fast and scalable connectivity for modern network infrastructures. With advanced security, energy-efficient fanless design, and flexible management options, it delivers reliable performance for office and enterprise environments.
Cisco C1300-24T-4X Specifications
| Category | Specification |
|---|
| Model | Cisco C1300-24T-4X |
| Series | Catalyst 1300 Series |
| Switch Type | Managed Layer 2 / Layer 3 Switch |
| Total Ports | 24 × 10/100/1000 Gigabit Ethernet |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Support | ❌ No PoE |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Stacking Support | Yes (up to 8 switches) |
| MAC Address Table | ~8K entries |
| Packet Buffer | 1.5 MB |
| Jumbo Frame Support | Up to 9000 bytes |
| Layer Features | VLAN, Static Routing, IGMP Snooping |
| Routing Support | IPv4 & IPv6 Static Routing |
| Security Features | ACL, DHCP Snooping, DoS Protection, 802.1X |
| QoS Features | WRR, Strict Priority |
| Management | Web UI, CLI, SNMP, Cisco Business Dashboard |
| CPU | Dual-Core (~1.4 GHz) |
| Memory (RAM) | 1 GB DDR4 |
| Flash Storage | 512 MB |
| Power Supply | Internal AC (100–240V) |
| Power Consumption | ~22.4W (max) |
| Cooling System | Fanless (silent operation) |
| Dimensions (W×D×H) | 445 × 240 × 44 mm |
| Weight | ~3.14 kg |
| Mounting | Rack-mountable (1U) |
| Operating Temperature | -5°C to 50°C |
| MTBF | ~0.65 million hours |
Cisco C1300-24T-4X Catalyst 1300 Series Switch – Best Price in Bangladesh
The Cisco C1300-24T-4X Catalyst 1300 Series Switch is a next-generation managed network switch designed for small to medium business (SMB) and enterprise edge networks. It features 24 Gigabit Ethernet ports and 4 × 10G SFP+ uplinks, delivering high-speed connectivity, advanced Layer 3 features, and reliable performance for modern IT infrastructure.
In Bangladesh, this switch is ideal for office networks, ISP deployments, and business LAN environments where high performance and scalability are required.
⚡ Key Features of Cisco C1300-24T-4X
- Model: Cisco C1300-24T-4X
- Series: Catalyst 1300
- Ports: 24 × 10/100/1000 Mbps Gigabit Ethernet
- PoE Support: No (Non-PoE model)
- Uplink Ports: 4 × 10G SFP+
- Switching Capacity: 128 Gbps
- Forwarding Rate: ~95.23 Mpps
- Switch Type: Layer 2 + Layer 3 (Static routing supported)
- VLAN Support: Advanced VLAN segmentation
- Stacking: Up to 8 switches supported
- Management: Web UI, CLI, SNMP, Cisco Business Dashboard
- Form Factor: 1U Rack Mountable
Why Choose Cisco C1300-24T-4X in Bangladesh?
The Cisco Catalyst 1300 series is designed for modern networks that require both performance and simplicity. This model is perfect for businesses that do not need PoE but require strong backbone connectivity and Layer 3 features.
- ✔ Cost-effective enterprise networking solution
- ✔ 10G uplinks for high-speed fiber backbone
- ✔ Advanced Layer 3 routing capability
- ✔ Easy management via web interface and dashboard
- ✔ Silent fanless design (ideal for office environments)
- ✔ Scalable network expansion with stacking support
Best choice for structured LAN and business networking in Bangladesh.
Best Use Cases
- Corporate office LAN networks
- ISP access and distribution networks
- Small to medium enterprise (SME) infrastructure
- Campus and educational institutions
- Branch office networking
- Data center edge layer switching
Ports & Performance Overview
This Cisco switch provides:
- 24 Gigabit Ethernet ports for wired devices
- 4 × 10G SFP+ uplinks for high-speed backbone
- High switching performance for enterprise traffic
- Advanced VLAN and routing support
- Smooth handling of data, voice, and application traffic
Installation Guide (Quick Setup)
- Mount the switch in a standard 19-inch rack
- Connect power to AC source
- Plug LAN devices into 24 Gigabit ports
- Use 10G SFP+ uplinks for fiber backbone
- Access via web UI or CLI
- Configure VLANs, routing, and security
Compatibility
This switch works seamlessly with:
- Cisco routers and firewalls
- Enterprise servers and NAS storage
- Fiber optic uplink infrastructure
- Wireless access points
- Network monitoring platforms
Frequently Asked Questions (FAQ)
What is Cisco C1300-24T-4X used for?
It is used for enterprise LAN switching, ISP networks, and business infrastructure with high-speed connectivity.
Does it support PoE?
No — this is a non-PoE switch designed for data-only connectivity.
How many uplink ports does it have?
It has 4 × 10G SFP+ uplink ports for high-speed fiber networking.
Is it suitable for enterprise networks?
Yes — it supports Layer 3 features, VLANs, and advanced security for enterprise use.
