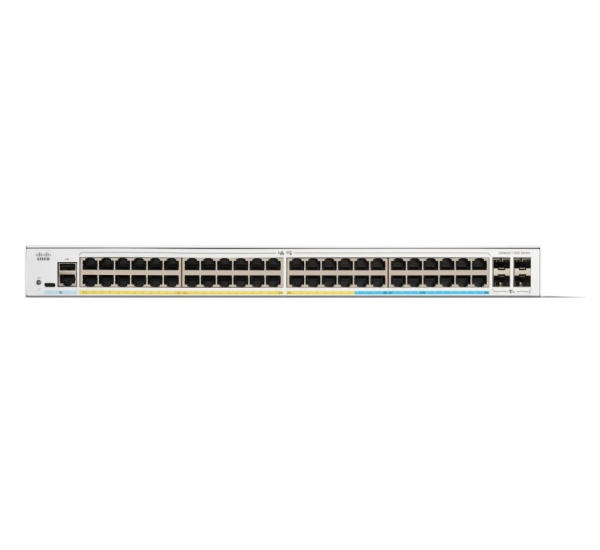

Cisco C1300-48FP-4X Catalyst 1300 48-Port Gigabit Full PoE+ Managed Switch
The Cisco C1300-48FP-4X is a high-density managed Gigabit Ethernet switch from the Cisco Catalyst 1300 Series, designed for business networks, enterprise branch offices, surveillance deployments, wireless infrastructure, IP telephony, and other environments requiring both high-density Ethernet connectivity and Power over Ethernet. The switch provides 48 × 10/100/1000BASE-T Gigabit Ethernet ports, with all 48 copper ports supporting PoE+, along with 4 × 10G SFP+ uplinks.
Designed as a Full PoE+ model, the C1300-48FP-4X provides a substantial 740W dedicated PoE power budget. Each supported Gigabit Ethernet port can deliver up to 30W under the applicable PoE+ standard and overall system power limitations. This makes the switch suitable for powering multiple wireless access points, IP phones, security cameras, IoT devices, and other compatible PoE endpoints without requiring individual power adapters.
Key Features of Cisco C1300-48FP-4X
- 48 × 10/100/1000BASE-T Gigabit Ethernet ports
- PoE+ support across all 48 Gigabit Ethernet ports
- 740W dedicated PoE power budget
- Up to 30W PoE+ power per port, subject to the available system power budget
- IEEE 802.3af PoE and IEEE 802.3at PoE+ support
- 4 × 10G SFP+ uplink ports
- Managed Layer 2 and Layer 3 networking capabilities
- VLAN, QoS, security, and traffic-management features
- IPv4 and IPv6 networking support
- Rack-mountable Catalyst 1300 platform
Technical Specifications
| Brand |
Cisco |
| Model |
C1300-48FP-4X |
| Series |
Cisco Catalyst 1300 Series |
| Product Type |
Managed Gigabit PoE+ Switch |
| Ethernet Ports |
48 × 10/100/1000BASE-T RJ-45 |
| PoE Ports |
48 |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Maximum PoE Per Port |
Up to 30W |
| PoE Budget |
740W |
| Uplink Ports |
4 × 10G SFP+ |
| Switching Type |
Managed Ethernet Switching |
| Packet Buffer |
1.5 MB |
| MAC Address Table |
16,000 addresses for Catalyst 1300 1 Gigabit Ethernet SKUs |
| Jumbo Frames |
Up to 9,000 bytes |
| Flash |
1GB SLC |
| CPU |
ARM dual-core 1.5 GHz |
| Memory |
1GB DDR4 |
| Management |
Web UI, CLI, SNMP, and Cisco Business Dashboard |
| Form Factor |
Rack-mountable |
48-Port Gigabit Full PoE+ Connectivity
The C1300-48FP-4X provides 48 Gigabit Ethernet access ports supporting 10/100/1000BASE-T connectivity. All 48 ports support PoE+ and can provide power to compatible network endpoints while simultaneously carrying Ethernet data. The full-PoE configuration is particularly useful in installations with a large number of powered network devices.
740W PoE+ Power Budget
With a 740W dedicated PoE budget, the switch is designed for deployments requiring substantial centralized power delivery. The available power can be allocated across compatible endpoints according to their individual requirements and the switch's total PoE power budget. Individual ports support up to 30W under IEEE 802.3at PoE+.
4 × 10G SFP+ Uplinks
Four dedicated 10G SFP+ interfaces provide high-speed uplink connectivity between the access layer and higher-level network infrastructure. Compatible 10G SFP+ transceivers can be selected according to fiber type, distance, and the requirements of the connected equipment.
Managed Networking Features
The Cisco Catalyst 1300 platform provides management and network-control capabilities for business Ethernet environments. Administrators can configure VLANs, Quality of Service, security controls, traffic policies, IPv4/IPv6 networking, discovery, monitoring, and other supported switching functions through the available management interfaces.
Ideal Applications
- Enterprise access-layer networks
- Business and corporate LAN deployments
- IP surveillance and security camera networks
- Wireless access point deployments
- VoIP and IP telephone networks
- IoT and connected-device networks
- Branch-office infrastructure
- Retail and commercial environments
- Education and institutional networks
- High-density PoE access networks
Compatibility
The C1300-48FP-4X can be integrated with compatible Cisco and third-party Ethernet equipment, including wireless access points, IP cameras, IP phones, servers, routers, switches, and network appliances. PoE-powered devices should be checked for their required PoE standard and power consumption before deployment. SFP+ transceivers should be selected according to Cisco compatibility requirements, link speed, fiber type, and transmission distance.
Why Choose Cisco C1300-48FP-4X?
- 48 Gigabit Ethernet access ports
- PoE+ support across all 48 ports
- 740W centralized PoE power budget
- Four 10G SFP+ high-speed uplinks
- Suitable for wireless, surveillance, VoIP, and IoT deployments
- Managed Layer 2 and Layer 3 networking capabilities
- Enterprise-oriented security and traffic-management features
- Rack-mountable Catalyst 1300 design
