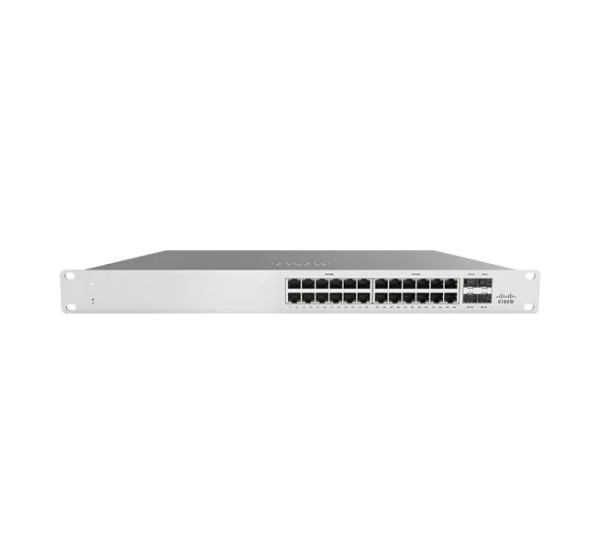

Cisco Meraki MS120-24-HW Cloud Managed Switch – 24-Port Gigabit Ethernet

The Cisco Meraki MS120-24-HW is a 24-port cloud-managed Gigabit Ethernet switch designed for branch offices, small and medium-sized business networks, distributed organizations and campus access deployments. It provides 24 Gigabit Ethernet RJ45 access ports together with 4 dedicated 1GbE SFP uplink ports.

As part of the Cisco Meraki MS120 Series, the MS120-24-HW is managed through the Meraki cloud platform, providing centralized configuration, monitoring, troubleshooting and firmware management. The switch supports zero-touch provisioning and virtual stacking for simplified administration across multiple sites.

Cisco Meraki MS120-24-HW Switch Features

• 24 × 10/100/1000Mbps Gigabit Ethernet RJ45 access ports
• 4 × 1GbE SFP uplink ports
• 56Gbps switching capacity
• 41.67Mpps forwarding rate
• Cloud-managed through the Cisco Meraki Dashboard
• Layer 2 switching functionality
• Virtual stacking for centralized management
• Internal power supply
• Fanless design
• Rack-mountable chassis
• Zero-touch provisioning
• Automatic firmware upgrades with scheduling control

Cisco Meraki MS120-24-HW Technical Specifications

Meraki Cloud Management

The MS120-24-HW is managed through the Cisco Meraki Dashboard. Administrators can configure switch ports, monitor network health, review events and usage statistics, apply security and quality-of-service policies, and perform remote troubleshooting from a centralized cloud interface.

Meraki cloud management also provides zero-touch provisioning, scheduled firmware upgrades, network topology visibility, port-level monitoring and remote diagnostic capabilities.

Cisco Meraki MS120-24-HW Switching Capabilities

• 802.1Q VLAN and trunking
• Support for up to 4,094 VLANs
• 802.1p Quality of Service
• DSCP-to-CoS mapping
• RSTP and STP support
• BPDU Guard, Root Guard and Loop Guard
• UDLD
• LLDP and Cisco Discovery Protocol
• 802.3ad link aggregation
• Port mirroring
• IGMP snooping
• IPv4 and IPv6 ACL support
• DHCP snooping
• 802.1X authentication and RADIUS support

Cisco Meraki MS120-24-HW Applications

• Small and medium-sized business networks
• Branch office Ethernet switching
• Campus access networks
• Enterprise LAN deployments
• Managed office networks
• IP phone and workstation connectivity
• Server and network appliance access connectivity
• Distributed multi-site network deployments

MS120-24-HW Compatibility and Important Note

The MS120-24-HW is a non-PoE model and should not be confused with the MS120-24P-HW PoE version. It provides 24 Gigabit Ethernet access ports and 4 × 1GbE SFP uplinks.

Cisco currently identifies the MS120-24 family as End-of-Sale. Therefore, buyers seeking this model should confirm product condition, license requirements, availability and Meraki Dashboard compatibility before purchase. A Meraki switch also requires the appropriate Meraki cloud licensing for operation and management.

Cisco Meraki MS120-24-HW Price in Bangladesh

For the latest Cisco Meraki MS120-24-HW price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on product condition, sourcing, warranty and Meraki licensing requirements.

Why Choose Cisco Meraki MS120-24-HW?

• 24 Gigabit Ethernet access ports for high-density wired connectivity
• 4 dedicated 1GbE SFP uplinks for fiber or compatible SFP connectivity
• Centralized cloud management through Cisco Meraki Dashboard
• Zero-touch provisioning for simplified deployment
• Virtual stacking for centralized management across multiple switches
• Fanless design for quieter network installations
• Suitable for legacy Meraki MS120 deployments and replacement requirements

Buy Cisco Meraki MS120-24-HW in Bangladesh

To purchase the Cisco Meraki MS120-24-HW Cloud Managed 24-Port Gigabit Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, availability, product condition and compatibility information.
