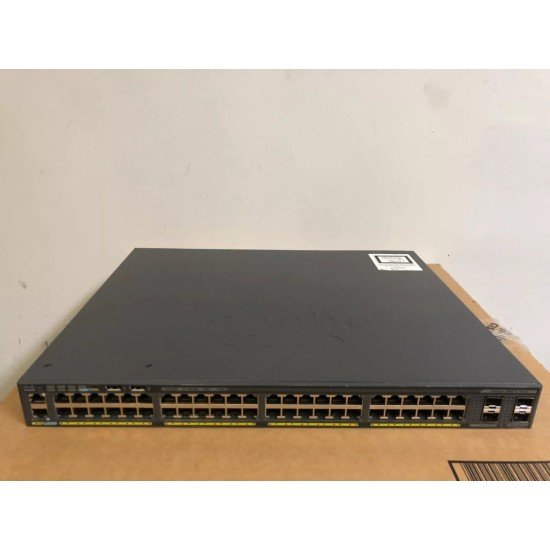

Cisco WS-C2960X-48FPS-L 48-Port Gigabit PoE+ Switch
The Cisco WS-C2960X-48FPS-L 48-Port Gigabit PoE+ Switch is a robust Layer 2 managed switch designed for enterprise and business networks. It offers 48 Gigabit Ethernet ports with PoE+ support to power devices like IP phones, access points, and cameras directly through the network. With advanced security, energy efficiency, and scalable performance, it’s ideal for stable, high-density connectivity in office and campus environments.
Cisco WS-C2960X-48FPS-L Specifications
| Specification | Details |
|---|
| Brand | Cisco |
| Model | WS-C2960X-48FPS-L |
| Series | Catalyst 2960-X |
| Switch Type | Managed Layer 2 (LAN Base) |
| Ports | 48 × 10/100/1000 PoE+ Ethernet |
| Uplink Ports | 4 × 1G SFP |
| PoE+ Budget | 740W total |
| PoE+ per Port | Up to 15.4W (48 ports) / up to 30W (24 ports) |
| Switching Capacity | 216 Gbps |
| Forwarding Performance | ~107.1 Mpps |
| Stacking Support | Up to 8 units (FlexStack-Plus) |
| Stack Bandwidth | 80 Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Up to 1023 VLANs |
| Jumbo Frames | Up to 9216 bytes |
| Form Factor | Rack-mountable 1U |
| Dimensions (W×D×H) | ~445 × 368 × 45 mm |
| Weight | ~5.8 kg |
| Operating Voltage | 100–240 VAC |
| Typical Use Case | Enterprise access layer with PoE support |
Cisco WS-C2960X-48FPS-L 48-Port Gigabit PoE+ Switch – Full Description
The Cisco WS-C2960X-48FPS-L is a powerful and reliable Layer 2 managed network switch designed for business and enterprise LAN environments. It features 48 Gigabit Ethernet PoE+ ports with a high PoE power budget, providing both data connectivity and power delivery to devices such as IP phones, wireless access points, and surveillance cameras over a single cable. With 4 SFP uplink ports and support for stacking, this switch delivers flexible connectivity, scalable performance, and efficient network management for growing infrastructures.
Key Features
- Model: WS-C2960X-48FPS-L
- Switch Type: Managed Layer 2 Ethernet Switch
- Ports: 48 x 10/100/1000 PoE+ Gigabit Ethernet
- PoE Budget: Up to ~740 W total PoE power (15.4 W per port at full load)
- Uplink: 4 x 1 G SFP fiber uplink ports
- Stacking: Supports stacking up to 8 units for scalability
- Management: CLI, SNMP, RMON, SSH, Telnet, HTTP/HTTPS support
- Security & VLAN: Advanced Layer 2 features, VLANs, QoS, access control lists
- Form Factor: 1U rack-mountable switch
How to Install This Switch
- Unbox and Inspect: Ensure the switch, power cord, and mounting brackets are included.
- Mount in Rack: Use the provided rack ears to install the switch into a standard 19-inch rack.
- Connect Power: Plug the power cord into a reliable power source or UPS.
- Connect Devices: Insert Ethernet cables into the 48 PoE+ ports to connect PCs, phones, APs, or cameras.
- Uplink Setup: Connect fiber or additional network devices via the 4 SFP ports.
- Initial Configuration: Access the switch through the console port or SSH for basic setup (IP address, VLANs, PoE settings).
- Enable Management: Use CLI or network management tools to configure security, QoS, and monitoring.
Compatibility
This switch is ideal for:
- Enterprise LAN access layers
- Small and medium business networks
- VoIP phone systems and PoE-powered devices
- Wireless access point backhaul
- IP CCTV and surveillance systems
Works Well With:
- Cisco routers and firewalls
- Servers and NAS storage
- Fiber uplinks and core switches
- Network management systems (SNMP, Cisco DNA Center)
Frequently Asked Questions (FAQ)
Q1: What is PoE+ and why is it useful?
PoE+ (802.3at) delivers power and data over the same Ethernet cable, simplifying deployments of devices like IP cameras and wireless access points.
Q2: How much PoE power does this switch support?
It supports up to approximately 740 W of total PoE power, enough to power multiple PoE devices simultaneously.
Q3: Can I stack multiple switches?
Yes — you can stack up to 8 Catalyst 2960X switches to expand your network while managing them as a single unit.
Q4: Does this switch support fiber uplinks?
Yes — it includes 4 SFP ports for fiber or other uplink connections.
Q5: Is this suitable for large enterprise networks?
It is best suited for access-layer deployment in enterprise or business networks where PoE and Gigabit connectivity are needed.
