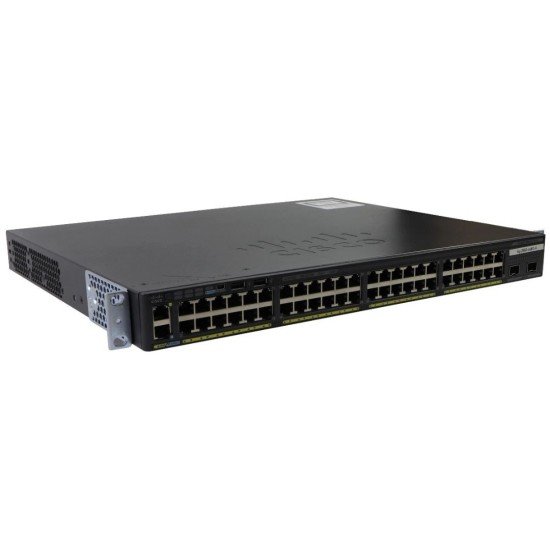

Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch
The Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch is a reliable enterprise-grade Layer 2 managed switch designed for high-performance networking. It features 48 Gigabit Ethernet ports with PoE+ support, making it ideal for powering IP phones, cameras, and wireless access points. With advanced security, energy efficiency, and scalable architecture, it ensures smooth and stable network operations for business environments.
Cisco WS-C2960X-48LPD-L Specifications
| Specification | Details |
|---|
| Brand | Cisco |
| Model | WS-C2960X-48LPD-L |
| Series | Catalyst 2960-X |
| Switch Type | Managed Layer 2 Switch (LAN Base) |
| Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet |
| Uplink Interfaces | 2 × 10G SFP+ |
| PoE Support | PoE+ (370W total budget) |
| Switching Capacity | 216 Gbps |
| Forwarding Performance | ~130.9 Mpps |
| Maximum VLANs | Up to 1023 active VLANs |
| MAC Address Table | 16K entries |
| CPU | Dual-core 600 MHz |
| RAM | 256 MB (varies by build) |
| Flash Memory | 64 MB (varies by build) |
| Stacking Support | Yes (up to 8 units) |
| Software | Cisco IOS (LAN Base) |
| Management Interfaces | RJ-45 Console, USB |
| Form Factor | Rack-mountable 1U |
| Dimensions (H×D×W) | 1.75″ × 14.5″ × 17.5″ (~4.5 × 36.8 × 44.5 cm) |
| Weight | ~12.9 lb (~5.8 kg) |
| Operating Temperature | Standard commercial range |
| Typical Use Case | Enterprise access layer with PoE support |
Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch – Full Description
The Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch is a high-performance, enterprise-grade Layer 2 managed switch designed for reliable and scalable network connectivity. It comes with 48 Gigabit Ethernet ports and PoE+ support, making it ideal for powering IP phones, wireless access points, and IP surveillance devices in enterprise and business environments.
This model is part of the Cisco Catalyst 2960-X series, known for its stability, energy efficiency, and advanced network management capabilities. With strong security features and optional stacking support, it ensures seamless network expansion and consistent performance for modern IT infrastructures.
Key Features
- Model: WS-C2960X-48LPD-L
- Series: Cisco Catalyst 2960-X
- Ports: 48 x 10/100/1000 Gigabit Ethernet
- PoE Support: PoE+ (Power over Ethernet) enabled
- Uplink Ports: 4 x 1G SFP
- Switch Type: Layer 2 Managed Switch
- Power Budget: Supports PoE devices like IP phones & cameras
- Stacking: FlexStack support (optional module)
- Energy Efficient: Low power consumption design
- Security: Advanced access control and VLAN support
How to Install This Switch
- Unbox and Inspect – Ensure all accessories are included.
- Rack Mounting – Install the switch in a standard 19-inch rack using brackets.
- Power Connection – Connect to a stable AC power source.
- Connect Devices – Plug network cables into the 48 Gigabit ports.
- PoE Devices Setup – Connect IP phones, cameras, or APs directly (no extra power needed).
- Uplink Configuration – Use SFP ports for fiber uplinks if required.
- Initial Setup – Configure via console CLI or network management tools.
Compatibility
This switch is suitable for:
- Enterprise LAN networks
- Office and corporate environments
- IP surveillance systems (CCTV)
- VoIP and communication systems
- Wireless access point deployment
Compatible With:
- Cisco routers, firewalls, and access points
- IP phones and PoE-enabled devices
- Servers and NAS storage systems
- Fiber optic backbone networks
Frequently Asked Questions (FAQ)
Q1: Does this switch support PoE?
Yes, it supports PoE+ to power devices like IP phones and cameras.
Q2: Can it be used in enterprise networks?
Yes, it is widely used as an access-layer switch in enterprise environments.
Q3: Does it support fiber uplinks?
Yes, it includes 4 x SFP ports for fiber connectivity.
Q4: Can I stack multiple switches?
Yes, it supports Cisco FlexStack for scalable network expansion.
Q5: What is the difference between L and LL models?
This “L” version includes full LAN Base features, which are more advanced than LAN Lite models.
Buy Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco WS-C2960X-48LPD-L Catalyst 2960-X Series Switch From Datacom Technologies BD. We have a large collection of latest Cisco Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price.
