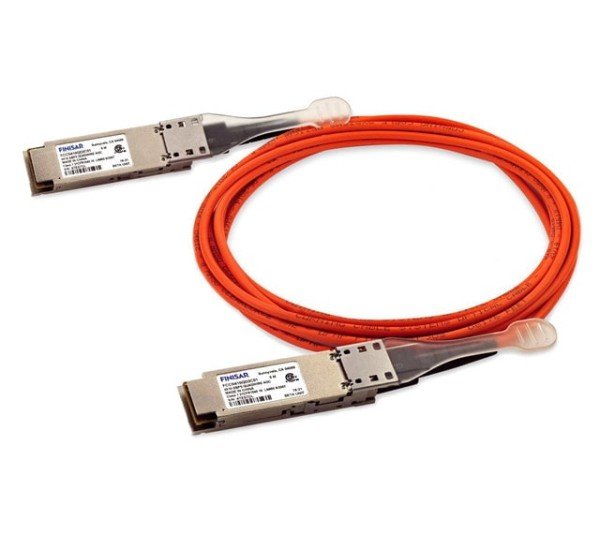

About FINISAR FCCN410QD3C10 40Gb/s 10m QSFP+ Active Optical Cable in Bangladesh
The FINISAR FCCN410QD3C10 is a 40Gb/s QSFP+ to QSFP+ Active Optical Cable (AOC) designed for high-speed short-distance connectivity between compatible networking, storage and high-performance computing equipment.
The cable uses Finisar Quadwire parallel optical technology with four full-duplex optical channels. It provides a 40Gb/s aggregate connection over 10 meters of multimode optical fiber while maintaining a compact QSFP+ connector interface at both ends.
The FCCN410QD3C10 is designed for applications including 40Gb Ethernet, InfiniBand QDR, Fibre Channel and other high-bandwidth interconnects. Current product documentation and distributor listings identify it as a 10m, QSFP-to-QSFP, parallel, multimode active optical cable with plenum-rated construction. ([DigiKey](https://www.digikey.com/en/products/detail/finisar-corporation/FCCN410QD3C10/6823451))
FINISAR FCCN410QD3C10 Specifications & Features
| Specification | Details |
|---|
| Brand | FINISAR |
| Part Number | FCCN410QD3C10 |
| Series | Quadwire |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate | 40Gb/s |
| Form Factor | QSFP+ |
| Connector Type | QSFP Plug to QSFP Plug |
| Gender | Male to Male |
| Cable Length | 10m |
| Fiber Type | Multimode Fiber (MMF) |
| Optical Architecture | 4-channel parallel full-duplex |
| Optical Technology | VCSEL |
| Cable Construction | Round, plenum-rated |
| Jacket Material | OFNP |
| Jacket Color | Orange |
| Cable Diameter | Approximately 3.3mm |
| Digital Diagnostics | Supported |
| Operating Temperature | 0°C to +70°C |
| Applications | 40GbE, InfiniBand QDR, Fibre Channel, HPC |
| Compliance | RoHS |
Overview
The FINISAR FCCN410QD3C10 provides a complete 40Gb/s optical interconnect without requiring separate QSFP+ transceiver modules and fiber patch cables. Both ends of the cable are factory terminated with QSFP+ connectors containing the required active optical components.
This makes the cable a practical solution for direct switch-to-switch, server-to-switch, storage and high-performance computing connections where a 10-meter optical link is required.
Buy FINISAR FCCN410QD3C10 40G 10m QSFP+ AOC in Bangladesh
Purchase the FINISAR FCCN410QD3C10 40Gb/s 10m QSFP+ Active Optical Cable from Datacom Technologies (BD). We supply FINISAR optical cables, QSFP+ modules, SFP/SFP+ transceivers, data center connectivity products and enterprise networking equipment in Bangladesh with competitive pricing, technical consultation and nationwide delivery.
Key Features
- 40Gb/s high-speed optical connectivity
- FINISAR FCCN410QD3C10
- 10-meter cable length
- QSFP+ to QSFP+ configuration
- Four-channel full-duplex optical architecture
- Multimode fiber technology
- VCSEL optical technology
- Active Optical Cable design
- Plenum-rated OFNP construction
- Approximately 3.3mm cable diameter
- Digital diagnostic functionality
- Hot-pluggable QSFP+ connectors
- 0°C to +70°C operating temperature
- RoHS compliant
Applications
- 40Gb Ethernet
- 40GbE Switch-to-Switch Links
- Data Center Interconnects
- Server-to-Switch Connectivity
- Storage Networking
- InfiniBand QDR
- Fibre Channel
- High-Performance Computing
- Cluster Interconnects
- Data Center Rack Connectivity
40Gb/s Parallel Optical Architecture
The FCCN410QD3C10 uses four parallel optical channels to provide a combined 40Gb/s connection. Each channel carries approximately 10Gb/s, with the four channels operating in full-duplex mode.
This parallel architecture is the foundation of many 40Gb/s QSFP+ optical interconnects and allows high bandwidth to be delivered through a compact QSFP+ connector.
Active Optical Cable Design
Unlike a passive copper Direct Attach Cable (DAC), the FCCN410QD3C10 is an Active Optical Cable. Optical components are integrated into the QSFP+ ends of the cable, while the cable itself provides the optical transmission path between the two endpoints.
This approach provides a lightweight, flexible optical connection for longer rack-to-rack or equipment-to-equipment links where passive copper cabling may not be suitable.
10 Meter Reach
The FCCN410QD3C10 has a factory-defined cable length of 10 meters. Because the optical transceivers and fiber are integrated into a single assembly, there is no need to separately calculate the length of patch cables and installable optics.
The fixed-length design also helps simplify data center deployment and cable management.
QSFP+ to QSFP+ Connectivity
Both ends of the FCCN410QD3C10 use QSFP+ male connectors. The cable can therefore directly connect two compatible QSFP+ ports without requiring separate optical transceiver modules.
Current distributor specifications identify the cable as a 38-position QSFP plug-to-plug assembly with male-to-male connectors and a 10-meter length. ([DigiKey](https://www.digikey.com/en/products/detail/finisar-corporation/FCCN410QD3C10/6823451))
Multimode Fiber
The FCCN410QD3C10 uses multimode optical fiber. Its integrated optical engines are designed around short-distance parallel optical transmission using VCSEL technology.
This makes the AOC well suited to intra-data-center connections where equipment is located within the supported 10-meter cable length.
VCSEL Optical Technology
Finisar Quadwire AOCs use vertically integrated VCSEL technology for their optical engines. VCSELs are widely used in short-distance data center optical links because they provide an efficient solution for high-speed multimode optical transmission.
Plenum-Rated Cable Construction
The FCCN410QD3C10 is available with a round, plenum-rated cable construction. Current distributor specifications identify the jacket material as OFNP (Optical Fiber Non-Conductive Plenum). ([Mouser](https://www.mouser.com/ProductDetail/Coherent/FCCN410QD3C10?qs=Mv7BduZupUgHe3k4AZFfog%3D%3D))
Plenum-rated optical cable is designed for installation in spaces where plenum-rated cabling is required by applicable building and fire codes. Always verify local installation requirements before deployment.
Thin and Flexible Cable Design
The cable has an approximately 3.3mm diameter, providing a relatively thin profile for high-density data center cable management. The round construction and small bend radius help simplify routing through crowded equipment racks.
Digital Diagnostic Monitoring
The FCCN410QD3C10 supports digital diagnostic functionality. Compatible host equipment can use the QSFP+ management interface to retrieve supported identification and operational information from the active cable assembly.
Diagnostic parameters available to the user depend on the connected networking or computing equipment.
Supported Applications
The Finisar Quadwire family is designed for multiple high-bandwidth interconnect applications.
- 40Gb Ethernet: Switch-to-switch and server-to-switch data center links.
- InfiniBand QDR: High-performance computing and cluster interconnects.
- Fibre Channel: High-speed storage networking.
- HPC: Low-latency connections between computing nodes and network infrastructure.
Product listings identify these applications for the FCCN410QD3C10/Quadwire family. ([HPC Optics](https://www.hpcoptics.com/Finisar-FCCN410QD3C10))
40G QSFP+ AOC vs QSFP+ Transceiver + Fiber
| Feature |
FCCN410QD3C10 AOC |
Separate QSFP+ Optics |
| Connection |
QSFP+ to QSFP+ |
Transceiver + fiber cable |
| Length |
10m fixed |
Flexible |
| Optical Components |
Integrated |
Separate |
| Installation |
Plug and play |
Requires optics and fiber |
| Cable Management |
Simple integrated assembly |
More components |
| Best Use |
Fixed short-distance links |
Flexible optical deployments |
Compatibility
The FCCN410QD3C10 is intended for compatible QSFP+ ports and 40Gb/s applications. Host equipment should be checked for QSFP+ AOC compatibility before purchase.
Although the cable follows industry-standard QSFP+ connectivity, vendor coding, firmware and equipment-specific compatibility can affect whether a particular switch, server adapter or storage platform accepts the AOC.
For example, independent hardware documentation identifies FCCN410QD3C10 as a tested and reliable 40Gb/s QSFP AOC for compatible systems. ([Adnacom](https://adnacom.com/doc/PFC-ICD.pdf))
Hot-Pluggable QSFP+ Interface
The QSFP+ connectors are designed for hot-pluggable installation in compatible networking equipment. This allows the cable to be installed or replaced without requiring the complete networking system to be powered down, subject to the host equipment's installation procedures.
Operating Temperature
The specified commercial operating case temperature range is 0°C to +70°C. ([DigiKey](https://www.digikey.com/en/products/detail/finisar-corporation/FCCN410QD3C10/6823451))
For installations in data centers or other environments outside this range, confirm the actual equipment and cable environmental requirements before deployment.
Benefits
- 40Gb/s high-speed connectivity
- 10-meter optical reach
- Integrated QSFP+ connectors
- Four-channel full-duplex architecture
- Multimode fiber
- VCSEL-based optical technology
- Active optical cable design
- Plenum-rated OFNP construction
- Thin approximately 3.3mm cable
- Digital diagnostics
- Hot-pluggable interface
- Suitable for data center and HPC environments
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies FINISAR optical cables, QSFP+ AOCs, QSFP/SFP transceivers, data center connectivity products and enterprise networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is FINISAR FCCN410QD3C10?
FCCN410QD3C10 is a 40Gb/s 10-meter QSFP+ to QSFP+ Active Optical Cable from the Finisar Quadwire family.
Q2: What is the cable length?
The cable is 10 meters long.
Q3: What connectors does it use?
It uses QSFP+ male connectors at both ends.
Q4: Is FCCN410QD3C10 an active or passive cable?
It is an Active Optical Cable (AOC) with integrated optical components in the QSFP+ ends.
Q5: What fiber type does it use?
It uses multimode optical fiber.
Q6: What data rate does it support?
The cable is designed for up to 40Gb/s operation.
Q7: What applications are supported?
Typical applications include 40Gb Ethernet, InfiniBand QDR, Fibre Channel and high-performance computing interconnects.
Q8: Does it support digital diagnostics?
Yes. The Quadwire AOC family supports digital diagnostic functionality.
Q9: What is the operating temperature?
The specified commercial operating case range is 0°C to +70°C.
Q10: Is the cable plenum rated?
Yes. Current distributor specifications identify the cable as plenum-rated with an OFNP jacket. ([Mouser](https://www.mouser.com/ProductDetail/Coherent/FCCN410QD3C10?qs=Mv7BduZupUgHe3k4AZFfog%3D%3D))
Q11: Can I use FCCN410QD3C10 between any two QSFP+ ports?
Not necessarily. Both devices must support the appropriate 40Gb/s QSFP+ AOC and vendor compatibility requirements.
Q12: Is FCCN410QD3C10 the same as FCBN410QD3C10?
No. These are different Finisar part numbers. FCCN410QD3C10 is the specific 10m QSFP+ AOC SKU covered by this listing and should not be substituted with FCBN410QD3C10 without verifying the exact application and specification.
Q13: What is the difference between an AOC and a DAC?
An AOC uses integrated optical transmitters, receivers and optical fiber, while a DAC uses electrical copper conductors. AOCs are generally preferred where longer short-range links, lower cable weight or improved high-density cable management are desired.
