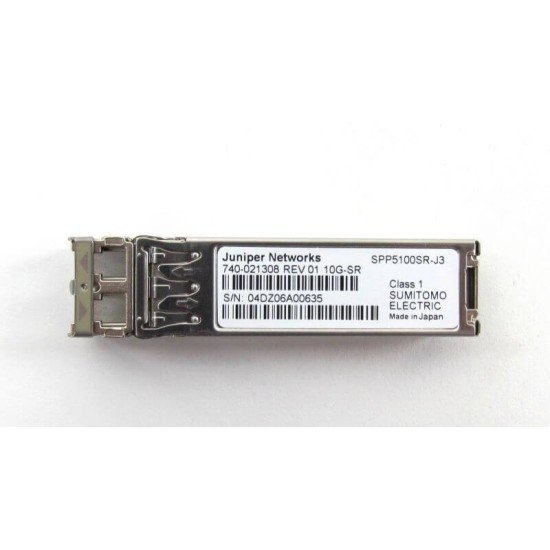

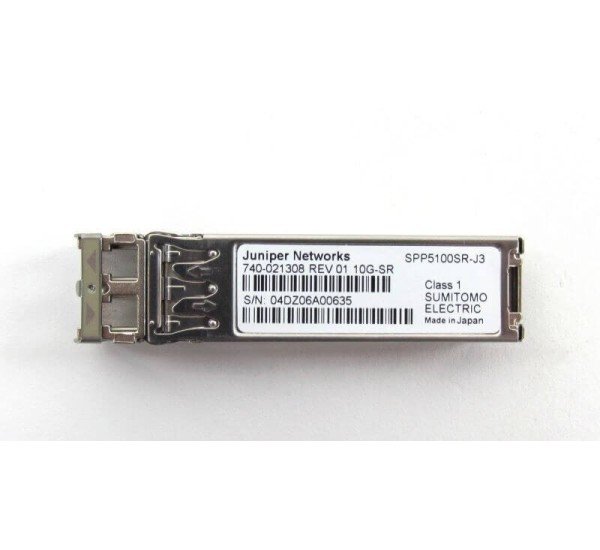

Juniper EX-SFP-10GE-SR Optical Transceiver Module
The Juniper EX-SFP-10GE-SR Optical Transceiver Module is a high-performance 10 Gigabit SFP+ transceiver designed for short-range, high-speed data transmission over multi-mode fiber (MMF). Manufactured by Juniper Networks, this module ensures reliable and efficient connectivity for enterprise networks, data centers, and campus infrastructures.
It is ideal for 10GbE networking applications, delivering fast, stable, and cost-effective optical connectivity in Bangladesh.
Key Features of Juniper EX-SFP-10GE-SR
- 10 Gigabit Ethernet (10GbE): High-speed data transfer up to 10Gbps
- Short-Range (SR) Optics: Designed for short-distance transmission over MMF
- 850nm Wavelength: Optimized for multi-mode fiber communication
- LC Duplex Connector: Standard fiber interface for easy deployment
- Hot-Swappable: Install or replace without powering down equipment
- Low Power Consumption: Energy-efficient optical module
- Reliable Performance: Enterprise-grade build for stable networking
Juniper EX-SFP-10GE-SR Optical Transceiver Module — Specifications
| Specification | Details |
|---|
| Model Name | Juniper EX-SFP-10GE-SR |
| Product Type | SFP+ Optical Transceiver |
| Data Rate | 10 Gbps (10GBASE-SR) |
| Form Factor | SFP+ (Hot-pluggable) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector Type | Duplex LC |
| Wavelength (Tx/Rx) | 850 nm |
| Max Distance | Up to 300 m (OM3 MMF), up to 400 m (OM4) |
| Data Rate (Max) | 10.3125 Gbps |
| Transmitter Type | VCSEL laser |
| Receiver Type | PIN photodiode |
| Digital Optical Monitoring (DOM/DDM) | Supported |
| Power Consumption | < 1W |
| Operating Temperature | 0°C to 70°C |
| Standards Compliance | IEEE 802.3ae, SFP+ MSA |
| Compatibility | Juniper EX/QFX series switches & routers |
| Application | Data center, enterprise network, campus LAN |
High-Speed 10G Optical Connectivity
The EX-SFP-10GE-SR module provides reliable 10Gbps throughput, making it ideal for:
- Data center switching
- High-speed uplinks
- Server-to-switch connectivity
- Aggregation layer networking
Its short-range capability is perfect for intra-rack and inter-rack connections.
Optimized for Multi-Mode Fiber Networks
This module uses 850nm wavelength for efficient transmission over multi-mode fiber, ensuring low latency and high performance within short distances such as:
- Data centers
- Enterprise LAN environments
- Campus networks
Compatibility & Deployment
The Juniper EX-SFP-10GE-SR is compatible with:
- Juniper EX Series switches
- Juniper QFX Series switches
- Other Juniper devices supporting SFP+ modules
It integrates seamlessly into existing Juniper networking environments.
Applications of Juniper EX-SFP-10GE-SR
- Data center networking
- Enterprise LAN backbone
- High-speed server connectivity
- Switch-to-switch uplinks
- Virtualized environments
Why Choose Juniper Optical Modules in Bangladesh?
- Trusted networking brand Juniper Networks
- High-performance 10GbE connectivity
- Reliable and durable design
- Easy deployment with hot-swappable support
- Ideal for enterprise and ISP environments
Buy Juniper EX-SFP-10GE-SR in Bangladesh
