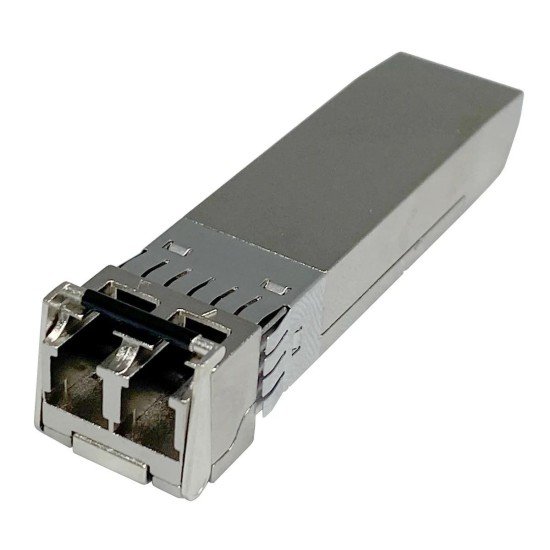

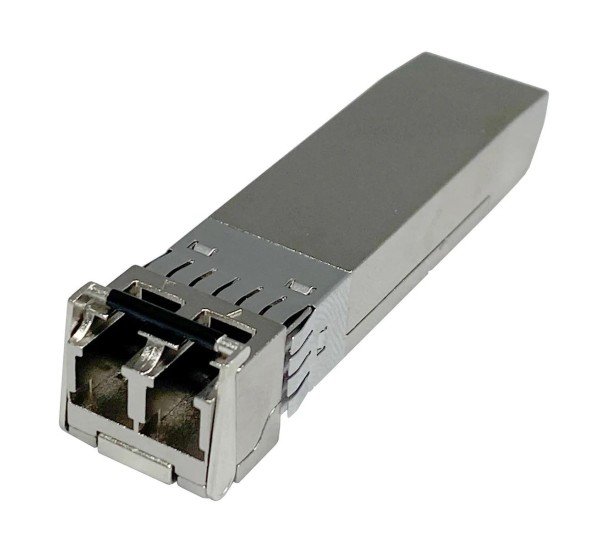

Juniper JNP-SFP-25G-SR 25Gbps SFP28 SR 100m Optical Transceiver Module
The Juniper JNP-SFP-25G-SR is a 25Gbps short-range optical transceiver designed for high-speed Ethernet connectivity over multimode fiber. It uses the compact SFP28 form factor and is intended for compatible Juniper networking equipment supporting 25Gbps optical interfaces.
Operating at a nominal 850nm wavelength, the module provides up to 100 meters of transmission over compatible multimode fiber. It is suitable for data centers, enterprise networks, server connectivity, and high-density switching environments requiring reliable short-range 25Gbps connectivity.
25Gbps SFP28 SR Optical Connectivity
The JNP-SFP-25G-SR provides 25Gbps Ethernet connectivity through an SFP28 interface. Its SR optical configuration is optimized for short-distance applications using multimode fiber.
The module provides a compact, high-density optical solution for compatible Juniper switches, servers, storage platforms, and other 25Gbps networking equipment.
100m Multimode Fiber Transmission
The transceiver is designed for multimode fiber (MMF) and supports a transmission distance of up to 100 meters. This makes it suitable for connections between network equipment located within the same data center, server room, or enterprise facility.
850nm Short-Range Optics
The module operates at 850nm, a wavelength commonly used for short-range multimode fiber networking. It is designed to provide high-speed optical connectivity across compatible MMF infrastructure.
SFP28 Form Factor
The compact SFP28 form factor provides high port density for 25Gbps network deployments. The transceiver can be installed directly into compatible SFP28 ports on supported Juniper networking equipment.
High-Density Data Center Deployment
The module is well suited to high-density data center environments where multiple 25Gbps connections are required. It can be used for switch-to-switch, switch-to-server, and other short-range optical network links.
Technical Specifications
| Specification |
Details |
| Brand |
Juniper Networks |
| Part Number |
JNP-SFP-25G-SR |
| Product Type |
25Gbps SFP28 SR Optical Transceiver |
| Form Factor |
SFP28 |
| Data Rate |
25Gbps |
| Optical Type |
SR |
| Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Maximum Distance |
100m |
| Connector |
Duplex LC |
Applications
- 25Gbps Ethernet networks
- 25Gbps data center connectivity
- Data center switch-to-switch links
- Switch-to-server connections
- Enterprise network infrastructure
- High-density network deployments
- 100m multimode fiber links
Compatibility
The Juniper JNP-SFP-25G-SR is designed for compatible Juniper networking equipment supporting 25Gbps SFP28 SR optical transceivers. Before installation, verify the host device's supported transceiver list, SFP28 port requirements, fiber specifications, connector configuration, and required transmission distance.
For reliable operation, ensure the installed multimode fiber infrastructure is appropriate for the 850nm SR optical link and that the connected equipment supports the required 25Gbps operating mode.
Juniper JNP-SFP-25G-SR Price in Bangladesh
Datacom Technologies (BD) supplies Juniper optical transceivers, networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The JNP-SFP-25G-SR is suitable for compatible 25Gbps network environments requiring short-range multimode fiber connectivity.
For current pricing, stock availability, and project quotations, customers can contact Datacom Technologies (BD) with the required quantity and compatible Juniper equipment details.
