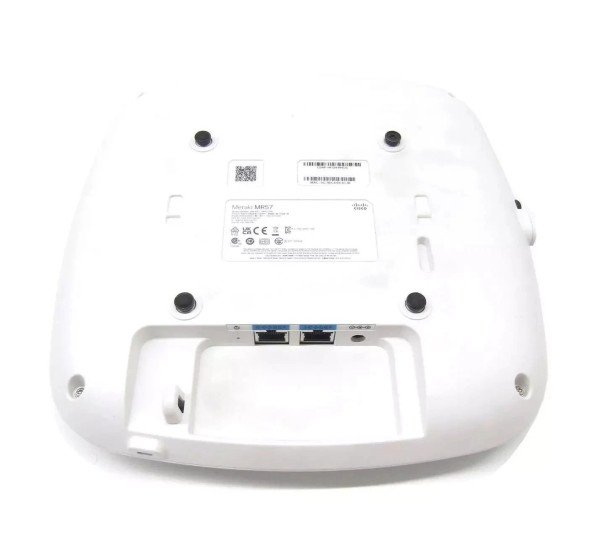

Cisco Meraki MR57 Wi-Fi 6E Indoor Access Point
The Cisco Meraki MR57 is an ultra-high-performance enterprise Wi-Fi 6E indoor access point designed for high-density, mission-critical wireless environments. It provides simultaneous 2.4 GHz, 5 GHz, and 6 GHz client access using three 4x4:4 MU-MIMO radios, delivering an aggregate frame rate of up to 7.78 Gbps.
The MR57 combines high-performance Wi-Fi 6E connectivity with Cisco Meraki cloud management, automatic RF optimization, integrated enterprise security, application-aware traffic shaping, and real-time wireless security monitoring. It is suitable for demanding deployments in offices, schools, healthcare facilities, retail environments, hotels, and other high-density locations.
Cisco Meraki MR57 Key Features
- Wi-Fi 6E (IEEE 802.11ax) tri-band enterprise access point
- Three 4x4:4 MU-MIMO client-serving radios
- 2.4 GHz, 5 GHz, and 6 GHz simultaneous wireless operation
- Up to 7.78 Gbps aggregate tri-radio frame rate
- Up to 574 Mbps on 2.4 GHz, 2.402 Gbps on 5 GHz and 4.804 Gbps on 6 GHz
- Dedicated tri-band Air Marshal WIDS/WIPS and RF analytics radio
- Integrated Bluetooth Low Energy radio for beaconing, scanning and IoT applications
- Dual 5 Gbps multigigabit Ethernet ports
- 802.3at and 802.3bt PoE compliant
- USB 2.0 Type-A host interface with up to 9.5W power budget
- Cloud-managed through the Cisco Meraki Dashboard
Cisco Meraki MR57 Technical Specifications
| Specification |
Details |
| Brand |
Cisco Meraki |
| Model |
MR57 |
| Wireless Standard |
Wi-Fi 6E / IEEE 802.11ax |
| Deployment |
Indoor Enterprise Access Point |
| Client Radios |
2.4 GHz, 5 GHz and 6 GHz |
| Radio MIMO |
4x4:4 on 2.4 GHz, 5 GHz and 6 GHz |
| 2.4 GHz Maximum Rate |
Up to 574 Mbps |
| 5 GHz Maximum Rate |
Up to 2.402 Gbps |
| 6 GHz Maximum Rate |
Up to 4.804 Gbps |
| Aggregate Frame Rate |
Up to 7.78 Gbps |
| Security/RF Radio |
Dedicated tri-band Air Marshal WIDS/WIPS and spectrum analysis radio |
| IoT Radio |
Bluetooth Low Energy beacon and scanning radio |
| Antennas |
Integrated omnidirectional antennas |
| Antenna Gain |
4.5 dBi at 2.4 GHz, 5.5 dBi at 5 GHz, 5.5 dBi at 6 GHz |
| Ethernet Interfaces |
2 × 100/1000/2.5G/5GBASE-T RJ45 |
| USB |
1 × USB 2.0 Type-A |
| Power |
802.3at and 802.3bt PoE; 54V DC input |
| Maximum Power Consumption |
Up to 40W |
| Wireless Technologies |
OFDMA, MU-MIMO, beamforming, MRC, BSS coloring and TWT |
| Channel Width |
Up to 160 MHz on 6 GHz |
| Management |
Cisco Meraki Cloud Dashboard |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
26 × 26 × 5.6 cm |
| Weight |
Approximately 1.7 kg including mounting plate |
MR57 Wi-Fi 6E Performance
The MR57 uses three dedicated 4x4 client-serving radios to provide simultaneous connectivity across the 2.4 GHz, 5 GHz and 6 GHz bands. The 6 GHz radio can provide up to 4.804 Gbps of maximum over-the-air data frame rate, while the 5 GHz and 2.4 GHz radios provide up to 2.402 Gbps and 574 Mbps respectively.
The third client radio can also be configured as a second 5 GHz radio instead of 6 GHz, providing deployment flexibility where additional 5 GHz capacity is more useful.
4x4 MU-MIMO and OFDMA
Wi-Fi 6 technologies including uplink and downlink MU-MIMO, OFDMA, beamforming, BSS coloring and Target Wake Time help improve spectrum efficiency and multi-client performance in high-density wireless environments.
Dedicated Air Marshal Security Radio
The MR57 includes a dedicated tri-band scanning and security radio for continuous WIDS/WIPS, spectrum analysis, RF monitoring and location analytics. This allows wireless security and RF analysis to operate without consuming the client-serving radio resources.
Dual 5GbE Multigigabit Connectivity
The Cisco Meraki MR57 provides two 100/1000/2.5G/5GBASE-T Ethernet ports. The dual Ethernet design supports high availability and link aggregation, while the ports can also participate in power-sharing configurations depending on the supported power source and firmware.
Cisco Meraki Cloud Management
The MR57 is managed through the Cisco Meraki Dashboard, providing centralized configuration, monitoring, firmware management, RF optimization, alerts and troubleshooting through a web-based cloud interface.
Enterprise Security Features
- WPA3 and 192-bit security support
- 802.1X authentication
- Active Directory integration
- Air Marshal wireless intrusion prevention
- Guest isolation
- Integrated enterprise security controls
- Application-aware Layer 7 traffic shaping
- Built-in RF spectrum analysis
Cisco Meraki MR57 Applications
- High-density enterprise offices
- Corporate campuses
- Schools and universities
- Hospitals and healthcare facilities
- Hotels and hospitality environments
- Retail stores and commercial facilities
- Mission-critical wireless deployments
- Voice and high-definition video applications
- Wi-Fi 6E deployments requiring 6 GHz connectivity
Compatibility and Deployment
The MR57 is designed for Cisco Meraki cloud-managed wireless deployments. Network infrastructure should provide suitable 5GbE connectivity and compatible PoE power. For full operation and USB availability, the appropriate PoE power configuration should be used according to Cisco Meraki requirements.
The MR57 supports desktop, wall and ceiling mounting, with standard mounting hardware included according to the manufacturer documentation.
Cisco Meraki MR57 Price in Bangladesh
The Cisco Meraki MR57 price in Bangladesh can vary depending on licensing, warranty, configuration and supply conditions. Contact Datacom Technologies (BD) for the latest price, availability and deployment guidance.
Why Choose Cisco Meraki MR57?
- High-performance Wi-Fi 6E with 6 GHz support
- Three 4x4:4 client-serving radios
- Up to 7.78 Gbps aggregate tri-radio frame rate
- Dual 5GbE multigigabit Ethernet connectivity
- Dedicated RF and wireless security scanning radio
- Integrated BLE and IoT capabilities
- Cloud-based Cisco Meraki management
- Advanced enterprise security and application-aware traffic shaping
- Designed for high-density and performance-intensive environments
Buy Cisco Meraki MR57 in Bangladesh
Looking for the Cisco Meraki MR57 Wi-Fi 6E Access Point in Bangladesh? Contact Datacom Technologies (BD) for pricing, licensing information, configuration assistance and enterprise wireless networking solutions.
