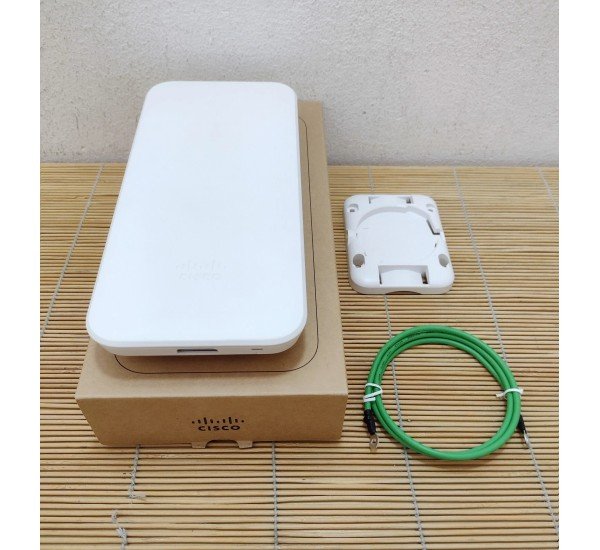

Cisco Meraki MR78 Wi-Fi 6 Outdoor Access Point
The Cisco Meraki MR78 is a rugged, cloud-managed outdoor Wi-Fi 6 access point designed to provide reliable wireless connectivity across outdoor commercial, campus, hospitality and industrial environments. It combines dual-band 2x2:2 Wi-Fi 6 radios with a dedicated security and RF analytics radio and integrated Bluetooth Low Energy capabilities.
With support for 2.4 GHz and 5 GHz wireless connectivity, OFDMA, MU-MIMO and beamforming, the MR78 is designed to efficiently serve multiple wireless clients while maintaining centralized management through the Cisco Meraki Dashboard.
Cisco Meraki MR78 Key Features
- Wi-Fi 6 (IEEE 802.11ax) outdoor access point
- Concurrent 2.4 GHz and 5 GHz 2x2:2 MU-MIMO radios
- Up to 1.7 Gbps aggregate wireless frame rate
- Up to 1.2 Gbps on the 5 GHz radio
- Dedicated radio for WIDS/WIPS and RF spectrum analytics
- Integrated Bluetooth Low Energy radio for beaconing and scanning
- Four external N-type antenna connectors
- IP67-rated weather-resistant enclosure
- Gigabit Ethernet connectivity
- 802.3af PoE support
- Cloud-managed through Cisco Meraki Dashboard
- Designed for demanding outdoor wireless deployments
Cisco Meraki MR78 Technical Specifications
| Specification |
Details |
| Brand |
Cisco Meraki |
| Model |
MR78 |
| Wireless Standard |
Wi-Fi 6 / IEEE 802.11ax |
| Deployment |
Outdoor Access Point |
| Client Radios |
2.4 GHz and 5 GHz |
| Radio MIMO |
2x2:2 MU-MIMO |
| 2.4 GHz Maximum Rate |
Up to 574 Mbps |
| 5 GHz Maximum Rate |
Up to 1.2 Gbps |
| Aggregate Frame Rate |
Up to 1.7 Gbps |
| Security/RF Radio |
Dedicated WIDS/WIPS and spectrum analytics radio |
| Bluetooth |
Integrated Bluetooth Low Energy beacon and scanning radio |
| Antennas |
External antenna connectors; antenna selection depends on deployment requirements |
| Ethernet |
1 × 10/100/1000BASE-T RJ45 |
| Power |
802.3af PoE |
| Wireless Technologies |
OFDMA, MU-MIMO, beamforming, BSS Coloring and TWT |
| Channel Width |
Up to 80 MHz |
| Environmental Rating |
IP67 |
| Operating Temperature |
Designed for outdoor environmental conditions |
| Management |
Cisco Meraki Cloud Dashboard |
MR78 Wi-Fi 6 Wireless Performance
The MR78 provides simultaneous 2.4 GHz and 5 GHz connectivity using 2x2:2 MIMO client-serving radios. Wi-Fi 6 technologies such as OFDMA and MU-MIMO improve spectrum efficiency and help the access point handle multiple connected devices more efficiently.
2x2 MU-MIMO and OFDMA
Uplink and downlink MU-MIMO, OFDMA, beamforming, BSS Coloring and Target Wake Time help improve wireless efficiency, particularly in environments with multiple active clients and varying traffic requirements.
Rugged Outdoor IP67 Design
The MR78 is designed for outdoor deployments and uses a rugged enclosure with IP67 protection. This makes it suitable for environments where protection against dust and water exposure is required.
External Antenna Architecture
The MR78 provides external antenna connectivity, allowing network designers to select an appropriate antenna configuration according to coverage requirements and installation conditions. Antennas should be selected based on the intended deployment and Cisco Meraki compatibility requirements.
Dedicated Wireless Security Monitoring
A dedicated scanning radio enables wireless intrusion detection and prevention, spectrum analysis and RF monitoring without requiring the primary client-serving radios to perform continuous scanning functions.
Bluetooth Low Energy
The integrated Bluetooth Low Energy radio supports beaconing and Bluetooth device scanning, enabling supported location-aware and IoT applications within the Meraki wireless environment.
Cisco Meraki Cloud Management
The MR78 is centrally managed through the Cisco Meraki Dashboard. Administrators can configure, monitor and troubleshoot wireless deployments remotely while applying centralized security and network policies.
MR78 Security Features
- WPA2 and WPA3 wireless security
- 802.1X enterprise authentication
- Wireless intrusion detection and prevention
- Rogue access point detection
- Guest isolation
- Layer 7 firewall capabilities
- Application-aware traffic shaping
- RF spectrum analysis
- Centralized cloud-based security management
Cisco Meraki MR78 Applications
- Outdoor enterprise campuses
- School and university outdoor areas
- Hospitality and hotel outdoor spaces
- Retail and commercial environments
- Industrial and warehouse areas
- Public outdoor Wi-Fi
- Corporate outdoor workspaces
- Outdoor IoT and location-aware applications
Compatibility and Deployment
The MR78 should be deployed with compatible Cisco Meraki antennas, PoE infrastructure and Meraki cloud management services. Verify the selected antenna, mounting hardware, licensing and switch power requirements before installation.
Cisco Meraki MR78 Price in Bangladesh
The Cisco Meraki MR78 price in Bangladesh can vary depending on antenna configuration, licensing, warranty and supply conditions. Contact Datacom Technologies (BD) for the latest price, availability and deployment guidance.
Why Choose Cisco Meraki MR78?
- Reliable Wi-Fi 6 connectivity for outdoor environments
- Concurrent 2.4 GHz and 5 GHz 2x2:2 wireless operation
- Up to 1.7 Gbps aggregate wireless frame rate
- Rugged IP67 outdoor enclosure
- External antenna flexibility
- Dedicated wireless security and RF monitoring radio
- Integrated Bluetooth Low Energy capabilities
- Centralized Cisco Meraki cloud management
- Suitable for enterprise, campus, hospitality and industrial deployments
Buy Cisco Meraki MR78 in Bangladesh
Looking for the Cisco Meraki MR78 Wi-Fi 6 Outdoor Access Point in Bangladesh? Contact Datacom Technologies (BD) for pricing, antenna selection, licensing information, configuration assistance and enterprise wireless networking solutions.
