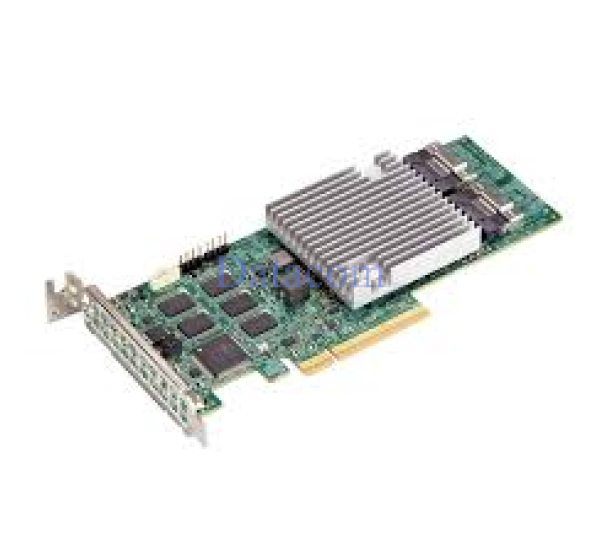

Supermicro AOC-S3908L-H8iR-16DD 8-Port Tri-Mode SAS/SATA/NVMe RAID Adapter
Supermicro AOC-S3908L-H8iR-16DD is a next-generation enterprise RAID controller designed for high-performance storage systems in Bangladesh. Built with PCIe 4.0 x8 interface and powered by Broadcom SAS 3908 chipset, this tri-mode RAID adapter supports SAS, SATA, and NVMe drives, delivering exceptional flexibility and speed for modern data centers. With advanced hardware RAID capabilities, large onboard cache, and high data throughput, this controller ensures maximum reliability, data protection, and performance for mission-critical applications in Dhaka and across Bangladesh.
Full Specifications
- Brand: Supermicro
- Model: AOC-S3908L-H8iR-16DD
- Interface: PCIe 4.0 x8
- Ports: 8 Internal Ports
- Data Transfer Rate: Up to 12Gb/s per port (SAS/SATA)
- Tri-Mode Support: SAS / SATA / NVMe
- RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, JBOD
- Controller Chip: Broadcom SAS 3908
- Cache Memory: 8GB DDR4 (2666MHz)
- Cache Protection: CacheVault with optional SuperCap
- Max Supported Devices: Up to 16 drives (expandable with expander)
- Form Factor: Low Profile
- Cooling: Passive Cooling
- Power Consumption: ~14W
- Connector Type: Mini-SAS HD / Slimline
- Supported Drives: SAS, SATA, NVMe SSDs
- Operating System Support: Windows, Linux, VMware
- RAID Management: MegaRAID Storage Manager
- Warranty: 1 Year
Best Applications for Use in Bangladesh
Supermicro AOC-S3908L-H8iR-16DD is ideal for enterprise storage environments in Bangladesh including data centers, cloud hosting, virtualization platforms, and high-performance computing (HPC). It is widely used by ISPs, financial institutions, and corporate IT infrastructures in Dhaka and Chattogram. This RAID adapter is perfect for handling large databases, virtualization clusters, AI workloads, and high-speed storage arrays. Its tri-mode capability makes it highly suitable for hybrid storage environments combining SAS, SATA, and NVMe drives.
How to Install
To install the Supermicro AOC-S3908L-H8iR-16DD RAID adapter, power off your server and insert the card into a PCIe 4.0 x8 slot. Secure the adapter with the bracket and connect your SAS, SATA, or NVMe drives using appropriate cables. Power on the system and access the RAID BIOS utility to configure RAID arrays. Install the required drivers and management software within your operating system. Ensure proper airflow inside the server chassis for optimal cooling and performance.
Compatibility Devices
This RAID controller is compatible with enterprise servers that support PCIe Gen4 slots, including Supermicro, Dell PowerEdge, HPE ProLiant, and Lenovo ThinkSystem platforms. It supports SAS and SATA HDD/SSD along with NVMe drives, offering maximum flexibility. The adapter works seamlessly with operating systems like Windows Server, Linux distributions, and VMware ESXi, making it ideal for modern enterprise deployments in Bangladesh.
Where to Buy in Bangladesh
Get the Supermicro AOC-S3908L-H8iR-16DD from authorized Datacom Technologies (BD)—100% genuine with full warranty and support. Buy Supermicro AOC-S3908L-H8iR-16DD at best price in Bangladesh from Datacom. You can get original Supermicro AOC-S3908L-H8iR-16DD from Datacom, We have a large collection of latest server RAID controllers to purchase. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price. The Supermicro AOC-S3908L-H8iR-16DD is available with a 1-year warranty.
