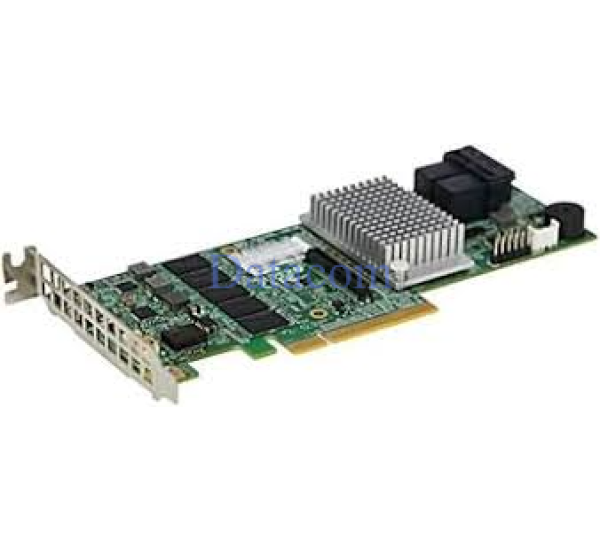

Supermicro AOC-S3108L-H8iR 8-Port SAS-3 Hardware RAID Controller
Supermicro AOC-S3108L-H8iR is a high-performance 8-port internal SAS-3 hardware RAID controller designed for enterprise storage solutions in Bangladesh. Built with advanced 12Gb/s SAS-3 technology and PCIe 3.0 x8 interface, this RAID controller delivers exceptional data transfer speed, reliability, and storage management capabilities. It is ideal for data centers, servers, and high-performance storage environments where data protection and performance are critical. With support for multiple RAID levels and cache memory, this controller ensures optimized storage efficiency, redundancy, and improved system performance for businesses in Dhaka and across Bangladesh.
Full Specifications
- Brand: Supermicro
- Model: AOC-S3108L-H8iR
- Interface: PCIe 3.0 x8
- Ports: 8 Internal SAS/SATA Ports
- Data Transfer Rate: Up to 12Gb/s per port
- RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60
- Controller Chip: Broadcom / LSI SAS3108
- Cache Memory: 1GB DDR3 Cache
- Cache Protection: Optional SuperCap (CacheVault)
- Connector Type: Mini-SAS HD (SFF-8643)
- Supported Drives: SAS and SATA HDDs / SSDs
- Form Factor: Low Profile / Full Height Bracket
- Operating System Support: Windows, Linux, VMware
- Compatibility: Supermicro and other standard servers
- Warranty: 1 Year
Best Applications for Use in Bangladesh
Supermicro AOC-S3108L-H8iR RAID Controller is ideal for enterprise storage applications in Bangladesh such as data centers, cloud storage systems, and virtualization platforms. It is widely used by IT companies, ISPs, and corporate organizations in Dhaka, Chattogram, and other major cities. This controller is perfect for database servers, backup systems, video storage, and high-performance computing environments where data redundancy and speed are essential. It is also suitable for RAID-based storage solutions in surveillance systems and enterprise IT infrastructure.
How to Install
To install the Supermicro AOC-S3108L-H8iR RAID Controller, power off your server and insert the card into an available PCIe 3.0 x8 slot on the motherboard. Secure the card properly using the bracket. Connect SAS or SATA drives to the controller using Mini-SAS HD cables (SFF-8643). Power on the system and enter the RAID BIOS or management utility to configure RAID arrays based on your requirements. Install the necessary drivers and management software within your operating system. Ensure proper airflow and cooling for optimal performance.
Compatibility Devices
The Supermicro AOC-S3108L-H8iR is compatible with a wide range of enterprise servers including Supermicro, Dell PowerEdge, HPE ProLiant, and Lenovo ThinkSystem. It supports SAS and SATA hard drives and SSDs, making it flexible for different storage configurations. The controller works seamlessly with operating systems like Windows Server, Linux distributions, and VMware ESXi. It is ideal for integration into both new and existing server infrastructures in Bangladesh.
Where to Buy in Bangladesh
Get the Supermicro AOC-S3108L-H8iR from authorized Datacom Technologies (BD)—100% genuine with full warranty and support. Buy Supermicro AOC-S3108L-H8iR at best price in Bangladesh from Datacom. You can get original Supermicro AOC-S3108L-H8iR from Datacom, We have a large collection of latest server RAID controllers to purchase. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price. The Supermicro AOC-S3108L-H8iR is available with a 1-year warranty.
