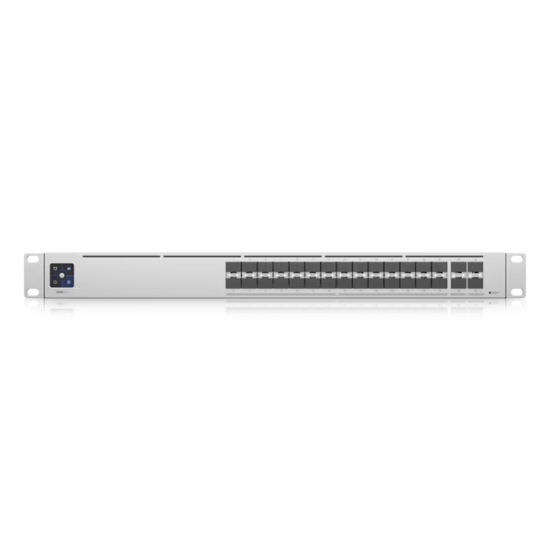

Ubiquiti UniFi USW-Pro-Aggregation 32-Port Layer 3 10G/25G Fiber Aggregation Switch
The Ubiquiti UniFi USW-Pro-Aggregation is a high-capacity Layer 3 aggregation switch designed for enterprise networks, data centers, server connectivity and high-speed fiber infrastructure. It combines 28 dedicated 10G SFP+ Ethernet ports with 4 SFP28 ports supporting up to 25Gbps connectivity.
With a 760Gbps switching capacity, 380Gbps total non-blocking throughput and 565Mpps forwarding rate, the USW-Pro-Aggregation provides high-density fiber aggregation for access switches, servers, storage systems and high-speed network uplinks. The switch integrates with the UniFi Network platform for centralized network management and monitoring.
Ubiquiti UniFi USW-Pro-Aggregation Features
- 32-port high-capacity fiber aggregation switch
- 28× 10G/1G SFP+ Ethernet ports
- 4× 25G/10G/1G SFP28 Ethernet ports
- 760Gbps switching capacity
- 380Gbps total non-blocking throughput
- 565Mpps forwarding rate
- Layer 3 switching capabilities
- Inter-VLAN routing and static routing
- DHCP server and DHCP relay features
- LACP port aggregation
- STP and RSTP support
- QoS with DSCP support
- Advanced IGMP configuration and multicast management
- UniFi Network centralized management
- 1U rackmount form factor
- DC power backup support
USW-Pro-Aggregation Technical Specifications
| Specification |
Details |
| Brand |
Ubiquiti |
| Product Family |
UniFi |
| Model |
USW-Pro-Aggregation |
| Product Type |
Layer 3 Fiber Aggregation Switch |
| Total Ports |
32 |
| 10G SFP+ Ports |
28 × 10G/1G SFP+ |
| SFP28 Ports |
4 × 25G/10G/1G SFP28 |
| Switching Capacity |
760Gbps |
| Total Non-Blocking Throughput |
380Gbps |
| Forwarding Rate |
565Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table |
32,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer |
4MB |
| Layer 3 |
Yes |
| Inter-VLAN Routing |
Yes |
| Static Routing |
Yes |
| DHCP Server |
Yes |
| DHCP Relay |
Yes |
| LACP |
Supported |
| STP/RSTP |
Supported |
| QoS |
DSCP |
| Management |
UniFi Network |
| Form Factor |
1U Rack Mount |
| Dimensions |
442 × 325 × 44mm |
| Maximum Power Consumption |
100W |
| Power Input |
100–240V AC, 50/60Hz |
| Power Backup |
USP-RPS DC backup input |
| Operating Temperature |
-5°C to 40°C |
| Operating Humidity |
10% to 90%, non-condensing |
Ubiquiti USW-Pro-Aggregation Layer 3 Networking
The USW-Pro-Aggregation provides Layer 3 networking functionality for high-speed network aggregation. Supported features include inter-VLAN routing, static routing, DHCP server functionality and DHCP relay. These capabilities allow the switch to perform more advanced network segmentation and routing functions within compatible UniFi deployments.
10G SFP+ and 25G SFP28 Connectivity
The switch provides 28 high-density 10G/1G SFP+ ports for fiber-based aggregation and four SFP28 ports capable of 25G, 10G or 1G Ethernet connectivity. The combination provides flexible connectivity for high-speed access switches, servers, storage platforms, network uplinks and other compatible Ethernet equipment.
Ubiquiti specifies the four SFP28 ports as 25G/10G/1G interfaces. When operating these ports in 25Gbps mode, the SFP28 ports have configuration limitations regarding mixed-speed operation, so network design should follow Ubiquiti's documented port requirements.
UniFi Network Management
The USW-Pro-Aggregation integrates with the UniFi Network management ecosystem, providing centralized configuration, monitoring and management for compatible UniFi networking environments. It can be deployed as a high-speed aggregation layer alongside UniFi gateways, switches and other supported network infrastructure.
Applications
- Enterprise fiber aggregation
- 10Gbps network aggregation
- 25Gbps server and network uplinks
- Data center network infrastructure
- High-speed storage networking
- Server and virtualization environments
- Core and distribution network deployments
- High-density UniFi network deployments
- Fiber uplinks between network switches
Ubiquiti USW-Pro-Aggregation Compatibility
The USW-Pro-Aggregation is designed for compatible 1G, 10G and 25G Ethernet equipment using supported SFP+, SFP28 optical transceivers, DAC cables and other compatible networking modules. Optical module and cable compatibility should be checked according to the required speed, fiber type, distance and equipment on the opposite end of the link.
Ubiquiti USW-Pro-Aggregation Price in Bangladesh
For the latest Ubiquiti UniFi USW-Pro-Aggregation price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, warranty and product availability.
Why Choose UniFi USW-Pro-Aggregation?
- High-density 10G and 25G fiber aggregation
- 28× 10G SFP+ ports for large-scale network connectivity
- 4× 25G SFP28 ports for high-speed uplinks
- 760Gbps switching capacity and 565Mpps forwarding performance
- Layer 3 routing and network management capabilities
- 1U rackmount design for data center and enterprise deployments
- Centralized UniFi Network management
- DC power backup support for improved power resilience
Buy Ubiquiti UniFi USW-Pro-Aggregation in Bangladesh
To purchase the Ubiquiti UniFi USW-Pro-Aggregation in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
