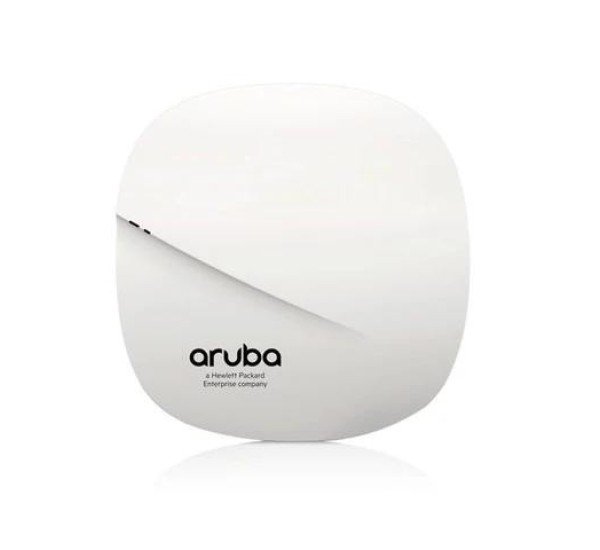

Aruba AP-303 Wi-Fi 5 Indoor Access Point – Unified AP, Dual 2x2 MIMO, 1.2 Gbps
The HPE Aruba Networking AP-303 is an affordable enterprise-class indoor access point designed to deliver reliable Wi-Fi 5 connectivity for medium-density environments. It features dual 2x2 MIMO radios with 802.11ac Wave 2 on 5 GHz and 802.11n on 2.4 GHz, providing an aggregate peak data rate of up to 1.2 Gbps.
The Aruba AP-303 is a Unified AP that can operate in both controller-based and controller-less Instant deployment modes. It combines enterprise wireless features with integrated Bluetooth Low Energy and support for Aruba IoT and location-based services.
Aruba AP-303 Key Features
- Wi-Fi 5 (IEEE 802.11ac Wave 2) enterprise wireless connectivity
- Dual 2x2 MIMO radios with Multi-User MIMO support
- Up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Up to 1.2 Gbps aggregate peak data rate
- Unified AP architecture for controller-based or Instant deployment
- Integrated Bluetooth Low Energy radio
- Integrated 802.15.4/Zigbee radio for AP-303P variant
- One Gigabit Ethernet RJ-45 network interface on AP-303
- 802.3af/at/bt PoE support for AP power
- MU-MIMO-aware ClientMatch for improved client connectivity
- Adaptive Radio Management and AirMatch RF optimization
- Wireless intrusion protection, spectrum analysis and secure enterprise mesh capabilities
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE Aruba Networking |
| Model | AP-303 |
| Product Type | Indoor Unified Campus Access Point |
| Wireless Standard | IEEE 802.11ac Wave 2 (Wi-Fi 5) |
| Radio Configuration | Dual radio, 2x2 MIMO |
| 5 GHz Radio | 802.11ac, 2x2 MIMO, up to 867 Mbps |
| 2.4 GHz Radio | 802.11n, 2x2 MIMO, up to 300 Mbps |
| Aggregate Peak Data Rate | Up to 1.2 Gbps |
| 5 GHz Channel Width | 20/40/80 MHz |
| 2.4 GHz Channel Width | 20/40 MHz |
| MU-MIMO | Supported |
| Antennas | Integrated dual-band downtilt omnidirectional antennas |
| 2.4 GHz Antenna Gain | 3.3 dBi peak per antenna |
| 5 GHz Antenna Gain | 5.8 dBi peak per antenna |
| Ethernet | 1 x 10/100/1000BASE-T RJ-45 |
| PoE | IEEE 802.3af/at/bt Power over Ethernet |
| Bluetooth | Integrated Bluetooth Low Energy radio |
| Zigbee | Supported on AP-303P variant |
| Deployment Mode | Controller-based ArubaOS or controller-less InstantOS |
| Security | WPA, WPA2 and WPA3 Enterprise/Personal, Enhanced Open |
| Management Features | ClientMatch, ARM, AirMatch, AppRF and Aruba Activate |
| Dimensions | 150 x 150 x 35 mm |
| Weight | Approximately 260 g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% to 93% non-condensing |
| Warranty | HPE Aruba Networking hardware limited lifetime warranty |
Unified Enterprise Wi-Fi 5 Connectivity
The AP-303 supports both controller-based and controller-less deployment models, giving organizations flexibility when designing and expanding their wireless infrastructure. Controller-based deployments provide centralized configuration, policy enforcement and network services, while Instant mode enables controller-less operation using a cluster of access points.
Dual 2x2 MIMO Wireless Performance
The 5 GHz 802.11ac radio provides up to 867 Mbps with compatible 2-stream VHT80 clients, while the 2.4 GHz 802.11n radio provides up to 300 Mbps with compatible 2-stream HT40 clients. Together, the radios deliver up to 1.2 Gbps aggregate peak data rate.
Enterprise RF Management
Aruba RF management technologies such as Adaptive Radio Management and AirMatch help optimize channel, channel width and transmit power according to the RF environment and client density. The AP can also operate as an air monitor or spectrum analyzer for wireless security and interference analysis.
Integrated IoT Connectivity
The AP-303 includes an integrated Bluetooth Low Energy radio for location-based services and asset tracking applications. The AP-303P variant additionally includes an 802.15.4 radio supporting Zigbee-based IoT deployments.
Applications
- Enterprise office wireless networks
- Schools and educational institutions
- Retail branches and stores
- Warehouses and medium-density environments
- Hotels and hospitality facilities
- Small and medium enterprise WLAN deployments
- IoT and Bluetooth-enabled location services
- Branch and remote-office connectivity
Compatibility
The Aruba AP-303 is designed for HPE Aruba Networking wireless environments and supports controller-based ArubaOS and controller-less InstantOS deployment modes. The exact software version and feature availability should be confirmed for the intended deployment because AP-303 is a legacy Wi-Fi 5 platform.
Aruba AP-303 Price in Bangladesh
The Aruba AP-303 price in Bangladesh may vary depending on regional SKU, warranty, accessories and availability. For the latest Bangladesh price and purchasing information, contact Datacom Technologies (BD).
Contact: sales@datacom.com.bd
Why Choose Aruba AP-303?
- Cost-effective enterprise Wi-Fi 5 access point
- Dual 2x2 MIMO architecture for simultaneous 2.4 GHz and 5 GHz connectivity
- Up to 1.2 Gbps aggregate peak wireless data rate
- Unified deployment with controller-based or Instant operating modes
- Integrated Bluetooth Low Energy for IoT and location services
- Enterprise RF management and wireless security capabilities
- Suitable for schools, retail, hotels, warehouses and enterprise offices
