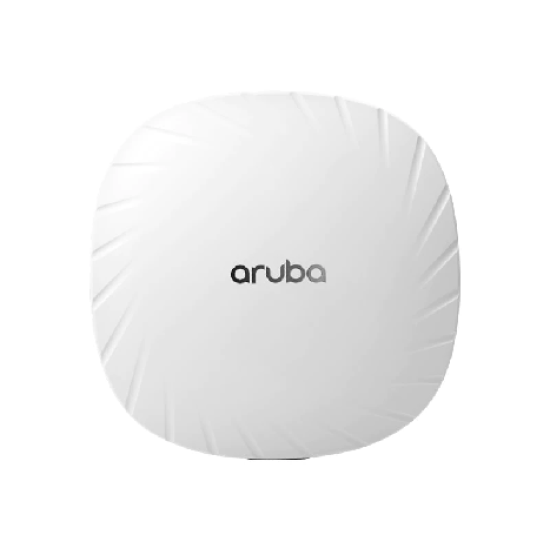

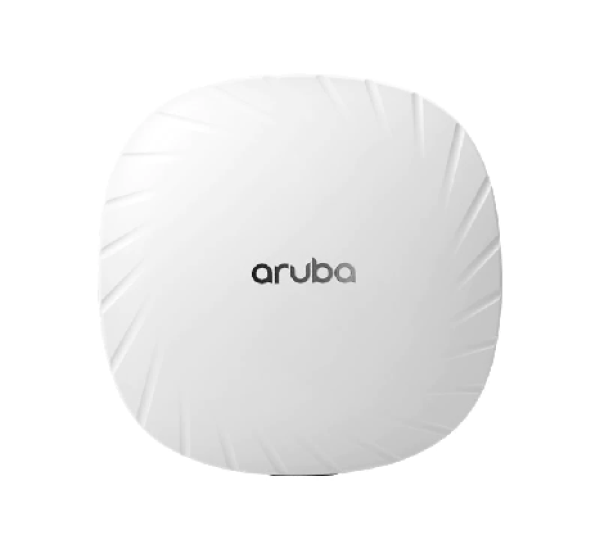

Aruba AP-514 Access Point
Aruba AP-514 Access Point is a high-performance Wi-Fi 6 device designed for enterprise environments requiring reliable and fast wireless connectivity. It features dual radio 2x2 MU-MIMO, SmartRate Ethernet, and external antennas for optimal coverage. With integrated Bluetooth 5.0 and IoT-ready USB, it ensures seamless wireless expansion and location-based services.
Specification Table
| Feature |
Specification |
| Model |
Aruba AP-514 |
| Wi-Fi Standard |
Wi-Fi 6 (802.11ax) |
| Radio Configuration |
Dual Radio 2x2:2 + 2x2:2 MU-MIMO |
| Frequency Bands |
2.4 GHz and 5 GHz |
| Max Data Rate |
Up to 2.97 Gbps (combined) |
| Ethernet Ports |
1 x 1G/2.5G/5GBASE-T SmartRate, 1 x 1G Ethernet |
| Antenna Type |
External antennas (connectorized) |
| Power Options |
802.3at PoE or DC power |
| Power Consumption |
Up to 23.3W |
| USB Port |
1 x USB 2.0 for IoT expansion |
| Bluetooth |
Integrated Bluetooth 5.0 for IoT and location services |
| Mounting Options |
Ceiling or wall mount (brackets sold separately) |
| Operating Temperature |
0°C to 50°C |
| Security |
WPA3, WPA2, Enhanced Open, TPM-based secure boot |
Aruba AP-514 AP – Description
The
Aruba AP-514 Access Point is a high-performance, enterprise-grade Wi-Fi 6 access point designed to deliver robust and secure wireless connectivity in environments with dense device populations. Engineered for maximum scalability, the AP-514 features dual-radio 2x2:2 MIMO technology, supporting both the 2.4GHz and 5GHz frequency bands for optimized throughput and reduced latency. It achieves a combined maximum data rate of up to 2.97 Gbps, making it ideal for high-bandwidth applications like HD video, IoT, and unified communications.
Designed with flexibility in mind, the AP-514 supports external antennas, giving administrators the option to customize coverage based on deployment needs—whether in large campuses, warehouses, or outdoor areas. It comes equipped with a high-speed SmartRate Ethernet port (up to 5 Gbps), an additional 1G port, and integrated Bluetooth 5.0 for advanced IoT and location-based services. The unit supports PoE for simplified cabling and installation.
With built-in security features such as WPA3, Enhanced Open, and Trusted Platform Module (TPM)-based secure boot, the Aruba AP-514 ensures data integrity and secure access. Its robust performance, flexible deployment options, and advanced security make it a powerful solution for modern enterprise networking.
? Key Features
- Wi-Fi 6 (802.11ax) support for faster speed, higher capacity, and improved efficiency.
- Dual Radio (5GHz and 2.4GHz) with 4x4:4 and 2x2:2 MIMO.
- External Antennas for flexible deployment and optimized coverage.
- SmartRate Ethernet Port (1G/2.5G) for high-performance connectivity.
- Advanced security with WPA3 and integrated TPM.
- IoT readiness with built-in Bluetooth 5 and Zigbee support.
- AI-powered RF optimization for better performance in high-density environments.
? Where It Can Be Used?
- Large enterprises and campus networks
- Education institutions (schools, colleges, universities)
- Healthcare facilities
- Warehouses and manufacturing floors
- Government and public sector offices
- High-density indoor environments like stadiums or convention centers
? Installation Step
- Mount the AP to a wall or ceiling using the bracket.
- Connect external antennas (required for directional coverage).
- Plug in the Ethernet cable (PoE-supported) for power and data.
- Configure via Aruba Central or local controller.
- Update firmware, set SSIDs, and apply security policies.
? User Experience
Users report consistent high-speed connectivity, especially in congested networks. With Aruba's AI-based radio management, performance remains stable even during peak usage. The web interface and Aruba Central provide an intuitive management experience. The external antenna design offers tailored coverage options in complex layouts.
✅ Why Choose Aruba AP-514 Access Point?
- Enterprise-grade Wi-Fi 6 performance
- Flexible deployment with external antennas
- Scalable and easy to manage via Aruba Central
- Built-in support for IoT and BLE for future-ready networks
- Enhanced security with WPA3 and TPM
- Proven Aruba reliability and support
Buy Aruba AP-514 Access Point at the Best Price from Datacom BD Online
In Bangladesh, you can get
Aruba AP-514 Access Point From
Datacom. We have a large collection of latest
Aruba Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The Aruba AP-514 AP comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Aruba AP-514 Access Point in Bangladesh?
The estimated price of
Aruba AP-514 Access Point in Bangladesh is 55,000৳. You can buy the Aruba AP-514 AP at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
