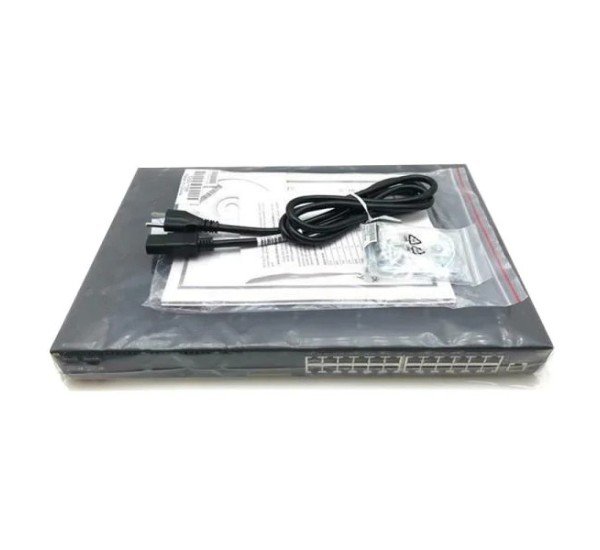

Aruba 2930F JL261A 24xGE PoE+ 4xSFP Switch Overview
Aruba 2930F JL261A 24xGE PoE+ 4xSFP Switch is a high-performance enterprise managed network switch designed for stable, secure, and scalable IT infrastructure. Built by Aruba Networks, this Layer 3 smart switch provides reliable Gigabit connectivity, PoE+ power support, and fiber uplink flexibility for modern business environments.
It is widely used in corporate office networks, ISP distribution systems, CCTV camera solutions, and enterprise campus networks in Bangladesh.
Full Specification of Aruba 2930F JL261A
| Feature | Specification |
|---|
| Model | Aruba 2930F JL261A |
| Series | Aruba 2930F Switch Series |
| Ports | 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 (PoE+) |
| Uplink Ports | 4 × 1GbE SFP (fiber uplink) |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | Up to 370W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Layer Support | Layer 2 & Layer 3 (Static, RIP, OSPF access) |
| Routing Features | Static routing, RIP, RIPng, limited OSPF |
| VLAN Support | Up to 4094 VLAN IDs |
| MAC Table Size | ~16K entries (typical Aruba 2930F series) |
| Packet Buffer | ~12 MB |
| Management Options | Web GUI, CLI, SNMP, Aruba Central, AirWave |
| Stacking | No VSF stacking (standalone model) |
| QoS Features | IEEE 802.1p, DiffServ, rate limiting |
| Security Features | 802.1X, MAC auth, ACLs, DHCP snooping |
| Power Supply | Internal AC power supply (100–240V) |
| Max Power Consumption | ~445W |
| Form Factor | Rack-mountable (1U) |
| Dimensions | 44.2 × 30.4 × 4.3 cm |
| Weight | ~3.9 kg |
| Operating Temperature | 0°C to 45°C |
| Use Case | Enterprise access layer, IP cameras, WiFi APs, VoIP |
Best Application for in Bangladesh
The Aruba 2930F JL261A PoE+ Switch is ideal for multiple professional networking environments in Bangladesh:
- Corporate office LAN infrastructure
- IP CCTV camera network systems
- ISP access and distribution layer
- Bank and financial institution networks
- University and educational campus networks
- Enterprise data and voice communication systems
- Smart building networking solutions
It is especially popular in Bangladesh for large CCTV and enterprise PoE network setups.
How to Install Aruba 2930F JL261A Switch
Installation process is simple but should be done carefully for best performance:
- Install switch in a standard 19-inch rack
- Connect power cable to UPS or stable power source
- Connect ISP uplink via SFP or Ethernet port
- Connect PoE devices like IP cameras or access points
- Access switch via web GUI or CLI for configuration
- Configure VLAN, IP, security, and routing settings
- Save configuration and reboot if necessary
For enterprise use, professional configuration is recommended.
Compatibility Devices
This switch is compatible with a wide range of networking devices:
- IP CCTV Cameras (PoE supported)
- Wireless Access Points (WiFi APs)
- IP Phones (VoIP systems)
- Network Video Recorders (NVR)
- Servers and Storage systems (NAS)
- Firewalls and Routers
- Enterprise desktop networks
Why Choose Aruba 2930F JL261A Switch
- Enterprise-level network stability
- High-speed Gigabit performance
- Built-in PoE+ power delivery
- Advanced security and traffic control
- Scalable network expansion support
- Reliable long-term operation
- Trusted global enterprise networking brand
Where to Buy Aruba 2930F JL261A in Bangladesh
Buy Aruba 2930F JL261A 24xGE PoE+ 4xSFP Switch from Datacom
- ✔ 100% Original Product
- ✔ Official Warranty Included
- ✔ Corporate Support Available
- ✔ Fast Delivery Anywhere in Bangladesh
Why Datacom Technologies BD
- Trusted enterprise IT supplier in Bangladesh
- Large stock of Aruba, Cisco, HPE switches
- Competitive pricing for corporate clients
- Professional technical support team
- Fast nationwide delivery service
- Reliable after-sales support
Final Summary
The
Aruba 2930F JL261A 24xGE PoE+ 4xSFP Switch is a powerful enterprise networking solution designed for high-performance, secure, and scalable network environments. It is an ideal choice for businesses, ISPs, and CCTV systems in Bangladesh requiring stable and efficient network infrastructure.
