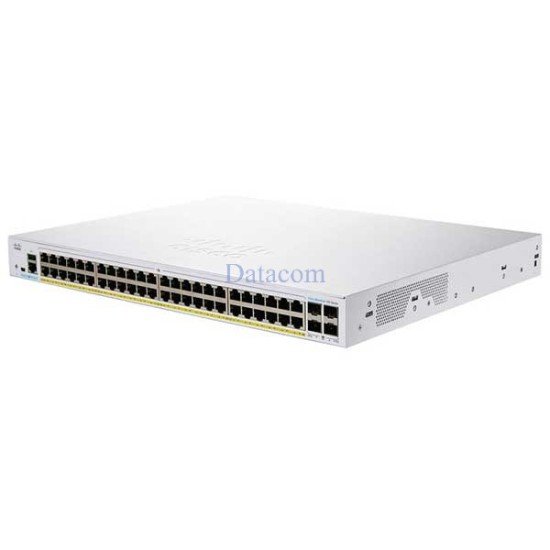

Cisco CBS350-48P-4G-EU Managed PoE Switch – Smart Business Network Solution
The Cisco CBS350-48P-4G-EU Managed PoE Switch from Cisco is a powerful and reliable Layer 3 managed switch designed for modern business networks in Bangladesh. Built for performance, scalability, and security, this switch delivers advanced networking features with 48 PoE-enabled Gigabit Ethernet ports and 4 Gigabit SFP uplinks.
Whether you are building a corporate LAN, ISP infrastructure, or enterprise-grade network, the Cisco CBS350 series ensures seamless connectivity, efficient power delivery, and robust traffic management. With advanced QoS, VLAN support, and security features, it is the perfect solution for growing businesses looking for high-performance networking equipment.
Full Specification of Cisco CBS350-48P-4G-EU
| Feature | Details |
|---|
| Model | Cisco CBS350-48P-4G-EU |
| Series | Cisco Business 350 Series |
| Device Type | Managed Layer 3 Switch |
| Form Factor | 1U Rack-Mountable |
| Ports | 48 × 10/100/1000 Gigabit Ethernet (PoE+) |
| Uplink Ports | 4 × 1G SFP (Gigabit Fiber Uplinks) |
| Total Ports | 52 Ports |
| PoE Support | Yes (IEEE 802.3af / 802.3at PoE+) |
| PoE Power Budget | 370W total |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | ~77 Mpps (estimated based on class) |
| Layer Support | Layer 2 + Layer 3 (Static Routing, VLAN, QoS) |
| MAC Address Table | 16K entries |
| VLAN Support | 4096 VLANs |
| Jumbo Frame Support | Up to 9KB |
| CPU | 800 MHz ARM Processor |
| RAM | 512 MB |
| Flash Memory | 256 MB (typical for series) |
| Management | Web GUI, CLI, SNMP, SSH |
| Security Features | ACL, 802.1X, DHCP Snooping, DoS protection |
| Cooling System | Active fan cooling |
| Power Supply | Internal AC (100–240V) |
| Power Consumption | ~445W (max typical) |
| Dimensions | 445 × 350 × 44 mm |
| Weight | ~5.4 kg |
| Operating Temperature | -5°C to 50°C |
Best Application for Bangladesh
The Cisco CBS350-48P-4G-EU is ideal for a wide range of applications in Bangladesh, including:
- Corporate office network infrastructure
- ISP and FTTH network deployment
- CCTV and IP surveillance systems (PoE powered)
- Educational institutions and campus networks
- Hotels, hospitals, and enterprise environments
- VoIP phone systems and wireless access point connectivity
Its PoE capability makes it especially useful in Bangladesh where simplified cabling and centralized power management are highly beneficial.
How to Install Cisco CBS350-48P-4G-EU
Installing the Cisco CBS350-48P-4G-EU is simple and efficient:
- Rack Mount Setup – Mount the switch in a standard network rack
- Power Connection – Connect to a stable power source
- Connect Devices – Plug Ethernet cables into the PoE ports
- Uplink Setup – Connect SFP uplinks to core network or router
- Access Management Interface – Use web browser or CLI
- Configure Network – Set VLANs, IP routing, and security policies
- Test Connectivity – Ensure all devices are properly connected
Compatibility Devices
The Cisco CBS350-48P-4G-EU is compatible with a wide range of devices:
- IP Cameras (Hikvision, Dahua, Uniview)
- Wireless Access Points (Cisco, Ubiquiti, TP-Link)
- VoIP Phones
- Desktop Computers & Laptops
- Routers and Firewalls
- Network Video Recorders (NVR)
- Servers and Storage Devices
Where to Buy Cisco CBS350-48P-4G-EU in Bangladesh
Get the Cisco CBS350-48P-4G-EU Managed PoE Switch from Datacom Technologies (BD)—100% genuine product with full warranty and expert technical support. We ensure authentic Cisco networking products with competitive pricing in Bangladesh.
Buy Cisco CBS350-48P-4G-EU from Datacom Technologies (BD)
In Bangladesh, you can get the original Cisco CBS350-48P-4G-EU Managed PoE Switch from Datacom Technologies (BD). We have a large collection of the latest Cisco managed switches and networking solutions.
Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price. The Cisco CBS350-48P-4G-EU is available with a 1-year warranty and professional after-sales support.
Explore More Cisco Managed Switches
Visit our more Cisco managed switch collections here and find the best networking solution for your business needs.
FAQ – Cisco CBS350-48P-4G-EU Managed PoE Switch
Q1: What is Cisco CBS350-48P-4G-EU used for?
The Cisco CBS350-48P-4G-EU is a fully managed business-class PoE switch used for enterprise networks, office LAN, IP surveillance systems, and SMB infrastructure. It provides reliable connectivity with advanced security and management features.
Q2: How many ports does Cisco CBS350-48P-4G-EU have?
It comes with:
- 48 x Gigabit Ethernet PoE+ ports
- 4 x Gigabit SFP uplink ports
This allows both high-density device connections and flexible uplink connectivity.
Q3: Does Cisco CBS350-48P-4G-EU support PoE+?
Yes, it supports PoE+ (IEEE 802.3at) with up to 370W total power budget, allowing you to power IP cameras, access points, and VoIP phones directly.
Q4: Is Cisco CBS350-48P-4G-EU a Layer 3 switch?
Yes, it is a Layer 3 managed switch that supports advanced features like VLAN routing, QoS, and traffic management for enterprise-grade networking.
Q5: What is the switching capacity of CBS350-48P-4G-EU?
The switch offers around 104 Gbps switching capacity, ensuring smooth and high-speed data transmission in business environments.
Q6: Does Cisco CBS350-48P-4G-EU support cloud or remote management?
Yes, it supports web-based, CLI, SNMP, and cloud management, making it easy to monitor and control your network remotely.
Q8: Is Cisco CBS350-48P-4G-EU suitable for small businesses?
Yes, it is designed for small to medium-sized businesses (SMB), offering a balance of affordability, performance, and advanced networking features.
